MI:pro Protector Case for micro:bit V2

SKU: PRT-17867 Brand: Sparkfun

Retired Product

Replaced by: CE07521

This product has been replaced by: CE07521
This product is no longer available. This page is only for reference.

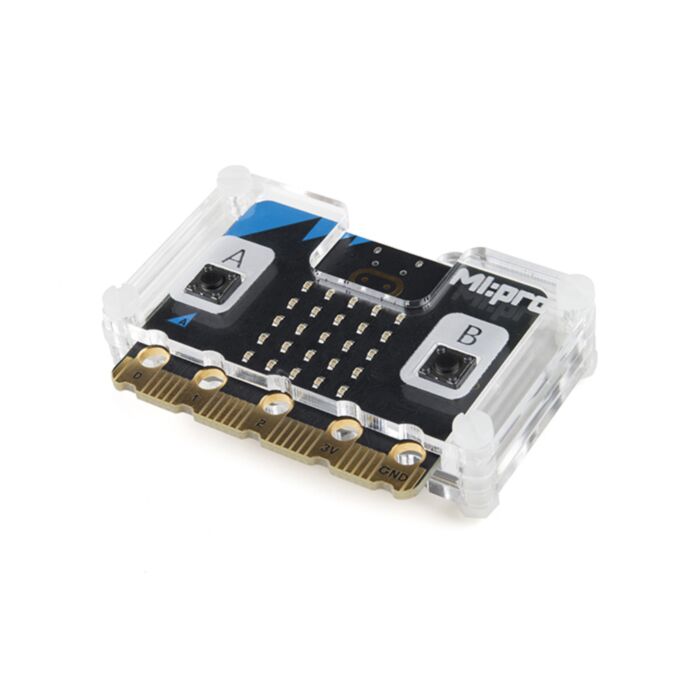

This MI:pro Protector Case for the BBC micro:bit has been designed to work with both the original micro:bit V1 and the micro:bit V2. These cases feature a four-layer construction style with ability to mount a 2xAAA battery pack to the back of the case while still providing access to all buttons and ports on the micro:bit. Though these cases do protect the micro:bit astoundingly well, the biggest benefit of using the MI:pro is to not accidentally short out the pads on the back of the micro:bit.

Construction is simple, requiring only a small flathead screwdriver (at most), and involves layering each plate on top of one another around the micro:bit and screwing it into place. Luckily, the MI:pro Protector case enables easy access to the edge pins at the bottom of the micro:bit, allowing it to still be plugged into an edge connector found on many of our carrier boards. The only board that cannot be used in conjunction with the MI:pro case is the SparkFun gamer:bit due to its edge connector being located in the center of the board.

Note: The MI:pro Protector case only includes the parts found in the Includes Tab. This case does NOT include a micro:bit, power source or mounting screws. These items will need to be purchased separately.

Includes

4x M3 Cheese Head Nylon Machine Screw.
1x Sticky Fixer Pad.
4x M3 Nylon Full Nut.
Laser-cut parts;
- 1x Back Mounting Plate.
- 2x Mid-layer Parts.
- 1x Mid-layer Plate.
- 1x Front Plate.

Features

Dimensions:
- Length: 65mm.
- Width: 37mm.
- Depth (without screws): 12mm.
- Depth (with screws): 18.5mm.
Provides excellent protection to the BBC micro:bit whilst allowing access to the bottom pins.
Full access to the A and B buttons on the BBC micro:bit.
Attach a battery cage to the rear of the case with the supplied sticky fixer.
Full access to pins and connections including the micro USB connector.
Clear case material shows the on-board LEDs in perfect clarity.
The case is compatible with versions 1 and 2 of the micro:bit.
When used in conjunction with a battery holder, micro:bit projects can be fully mobile.

Documents

Assembly Guide
