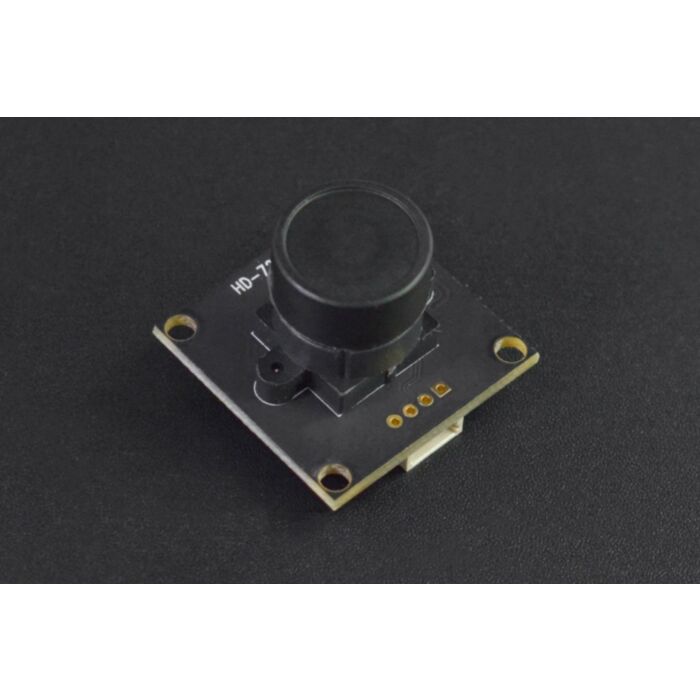

Megapixel 720p USB Wide-angle Camera for Raspberry Pi and NVIDIA Jetson Nano

Rating:

100% of 100

SKU: FIT0892 Brand: DFRobot

This megapixel USB wide-angle camera with a resolution of 1280*720 supports 140-degree viewing angle and standard UVC communication protocol. It is...

$33.50 AUD, inc GST

$30.45 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Mon, 25th of Nov

Quantity Discounts:

10-25 $29.54 (exc GST)
25+ $28.93 (exc GST)

This megapixel USB wide-angle camera with a resolution of 1280*720 supports a 140-degree viewing angle and standard UVC communication protocol.

Plug and play, it is compatible with Raspberry Pi and NVIDIA Jetson Nano series. The wide viewing angle provides you with a better photo experience.

The module has a very small size of 38mm*38mm, which can be embedded in various devices for face recognition, image recognition, security, remote teaching, and other projects.

Megapixel 720p USB Wide-angle Camera

Features

Plug and play
Compatible with Raspberry Pi and NVIDIA Jetson Nano

Applications

Face recognition
Image recognition
Security
Remote teaching

Specification

Lens Size: 1/4 inch
Pixel Size: 3µm x 3µm
Maximum Effective Pixels: FULL HD 1280(H)*720(V)
Field of View (FOV): 140°
Output Image Format: MJPEG/YUV2 (YUYV)
Supported Resolutions: 320*240 MJPEG@30fps; 352*288 YUV2@30fps; 352*288 MJPEG@30fps; 640*480 YUV2@25fps; 800*600 MJPEG@30fps 320*240 YUV2@30fps; 1280*720 MJPEG @25fps; 800*600 YUV2@15fps; 640*480 MJPEG@25fps; 1280*720 YUV2@10fps
Special Function: Lens correction/Defective pixel correction/Black sun cancellation
Minimum Illumination: 0. 051lux
Shutter Type: Electronic rolling shutter / Frame exposure
USB Protocol: USB2.0 HS/FS
Interface Type: USB2.0 High Speed
Support OTG Protocol: USB2.0 OTG
Support Driver-free Protocol: USB Video Class (UVC)
Automatic Exposure Control AEC: support
Automatic White Balance AEB: support
Automatic Gain Control AGC: support
Adjustable Parameters: brightness / contrast / color saturation / hue / sharpness / gamma / white balance / backlight / contrast / exposure
Night Vision Function: support, need to cooperate with infrared lens 850 or 940nm, and infrared light board
Infrared Light Board-Power Supply Interface: support, 2P-2.0mm socket
Power Supply Mode: USB BUS POWER 4P-2.0mm socket
Working Voltage: DC 5V
Working Current: 120mA~220mA
Working Temperature: 0~60°C
Storage Temperature: -20~75°C
Size/Weight: 38x38mm/1.50x1.50 inch (Compatible with 32x32mm/1.26x1.26 inch) / about 30g
Support Operating System: Windows, iOS, Android, Linux, etc.

Parts List

Megapixel 720p USB Wide-angle Camera x1
USB Cable x1
