Mean Well Switching Power Supply - 24VDC 14.6A

SKU: TOL-14100

$94.25 AUD, inc GST
$85.68 AUD, exc GST

More Views

Mean Well Switching Power Supply - 24VDC 14.6A
94.2467 AUD

SKU: TOL-14100

$94.25 AUD, inc GST
$85.68 AUD, exc GST
In stock, ships today if ordered before 2PM
Delivered by Thu, 24th of Aug

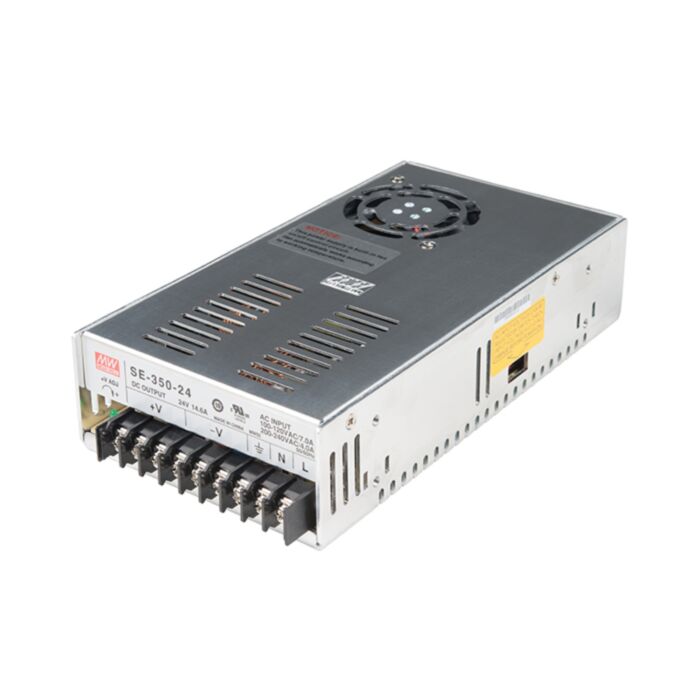

This is the big kahuna from Mean Well, a 350W single output switching power supply. This power supply is extremely reliable and beefy, able to output 24VDC at 14.6A. If you’ve been looking for a powerful power supply for your next big project, look no further. We can definitely attest to its durability with its metal casing, built-in constant current-limiting circuit, fixed switching frequency at 90KHz and ability to withstand a 300VAC surge input for up to five seconds.

Inside the metal case that surrounds the power supply you will find a selector switch to change the voltage range between 90VAC to 132VAC and 180VAC to 264VAC, or 254VDC to 370VDC. This specific model is cooled by forced air cooling with a built-in DC fan (with On/Off control) and operates at a temperature of -20°C to +60°C. Mean Well has really outdone themselves with their power supplies, which are high quality and should last for quite some time without any loss in reliability!

Features:

  • Output Voltage: 24VDC
  • Output Current Range: 0–14.6A
  • Output Rated Power: 350W
  • Input Voltage Range: 90–132VAC / 180–264VAC by switch, 254–370VDC
  • Forced air cooling by built-in DC fan
  • Withstand 300VAC surge input for 5 seconds
  • Built-in cooling Fan On/Off control
  • Built-in constant current-limiting circuit
  • LED indicator for power on
  • Fixed switching frequency at 90KHz
  • 100% full load burn-in test

Documents:

Documentation and Resources:
