Mean Well Switching Power Supply - 12VDC, 12.5A

SKU: TOL-14099 Brand: Sparkfun

Retired Product

Replaced by: AM8739

This product has been replaced by: AM8739
This product is no longer available. This page is only for reference.

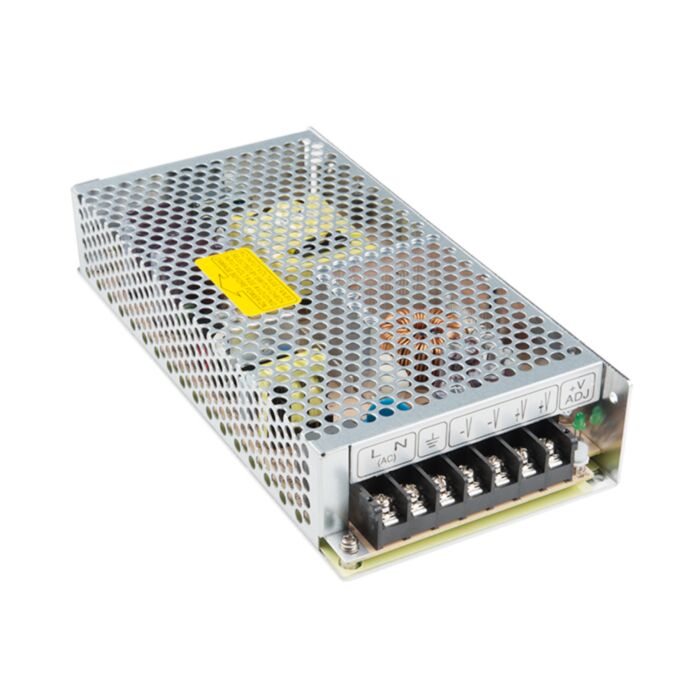

This is a 150W single output switching power supply from Mean Well. This power supply is extremely reliable and able to output 12VDC at 12.5A. We’ve been testing this power supply for quite some time and can definitely attest to its durability with its metal casing, short circuit, overload and overvoltage protections.

Inside the metal case that surrounds the power supply you will find a selector switch to change the voltage range between 90VAC to 132VAC and 180VAC to 264VAC, or 254VDC to 373VDC. This specific model is cooled by free air convection and operates at a temperature of -20°C to +60°C. Mean Well has really outdone themselves with their power supplies, which are high quality and should last for quite some time without any loss in reliability!

Features:

Output Voltage: 12VDC
Output Current Range: 0–12.5A
Output Rated Power: 150W
Input Voltage Range: 90–132VAC/180–264VAC selected by switch, 254–373VDC
Protections: short circuit, overload, overvoltage
Cooling by free air convection
LED indicator for power on
100% full load burn-in test

Documents:

Datasheet (NES-150-12)
