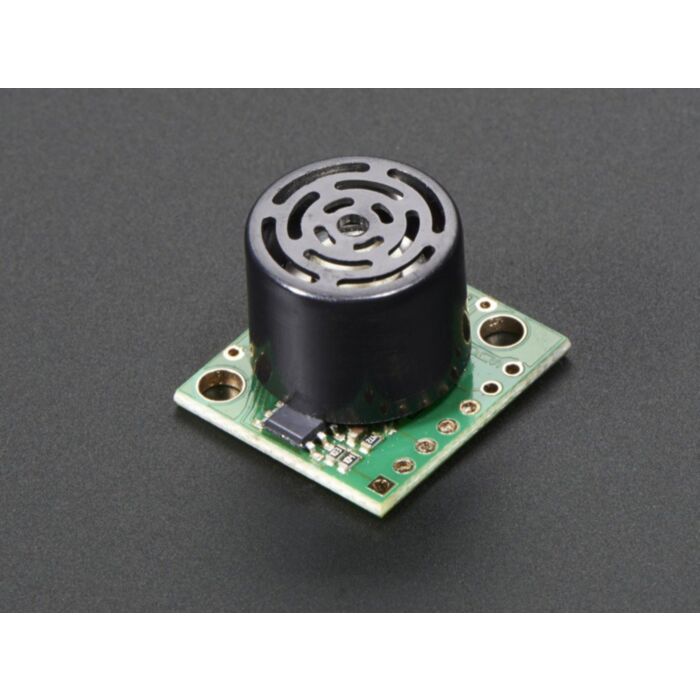

    Maxbotix Ultrasonic Rangefinder - LV-EZ1 - LV-EZ1

    SKU: ADA172

    $53.50 AUD, inc GST
    Maxbotix Ultrasonic Rangefinder - LV-EZ1 - LV-EZ1
    53.5 AUD

    SKU: ADA172

    $53.50 AUD, inc GST
    133 units ship in 4 to 7 days (delivered by Wed, 1st of Mar)

    LV-EZ1 Maxbotix Ultrasonic Rangefinder provides very short to long-range detection and ranging, in an incredibly small package. It can detect objects from 0-inches to 254-inches (6.45-meters) and provides sonar range information from 6-inches out to 254-inches with 1-inch resolution. (Objects from 0 inches to 6-inches range as 6-inches.) The interface output formats included are pulse width output (PWM), analog voltage output (Vcc/512 volts per inch), and serial digital output (9600 baud).

    A good sensor for when a Sharp IR distance sensor won't cut it. For example of using this with an Arduino, see the Halloween Pumpkin project.

    LV-EZ1 Data Sheet / Product Information Guide is available here.

    The different LV models have different beam width patterns, check this image for a comparison of all the LV model beam patterns. For higher sensitivity, check out the HR-LV models - they have up to 1mm sensitivity and 5 meter range!

    Technical Details

    Dimensions:

    • Length: 15.52mm/0.61in
    • Width: 22.36mm/0.88in
    • Height: 20.0mm/0.79in
    • Weight: 4.23g/0.15oz

    For product support for all Maxbotix products, click here!

    Documentation and Resources:
