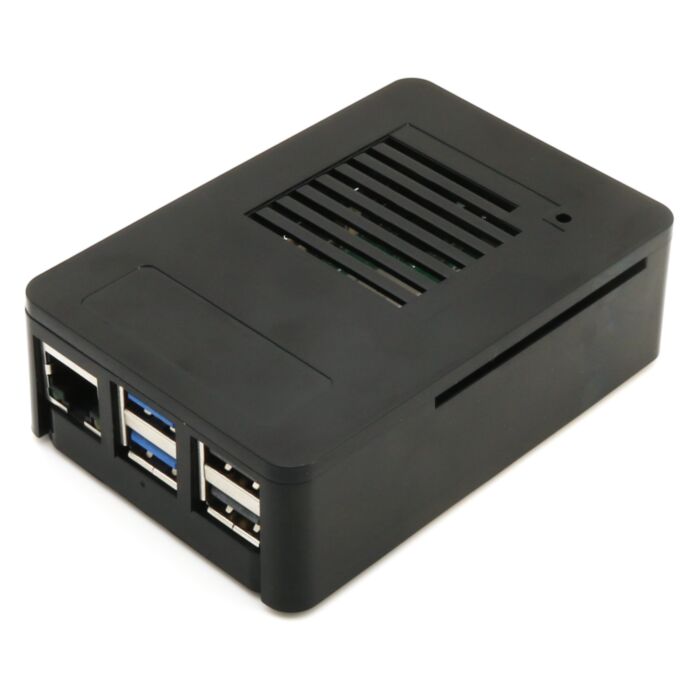

MaticBox 5 Case for Raspberry Pi 5 - Black
Available with a lead time
Expect dispatch between Apr 28 and May 02
The innovativeMaticBox 5case forRaspberry Pi 5is a multifunction, adaptable andstackable Pi 5 case that comes with a range of accessories to allow you to fitHATsandcoolers, wall or DIN rail mount it, stack it and more!
Whether you want to make a compact stacked Raspberry Pi 5 cluster, enclose a HAT, mount your Pi to any surface (including DIN Rail) or simply keep it safe and cool - this case does it all - and is available in two colours to suit your environment and other hardware.
The MaticBox 5 comes with different lids, accessories and features to adapt to different projects:
- Stackable- multiple MaticBox 5 cases can be stacked to make a compact, scalable Raspberry Pi 5 cluster thanks to the clever feet design
- HAT-compatible- use the included automation lid, which increases the height of the case by ~16mm. Also includes a modifiable slot cover on the short/SD side for cables
- Mount it anywhere- use the included universal mounting base, which features screw mount points, DIN rail mounting and zip tie securing points
- Compatible with Active Coolers- the case has been designed to accommodate theRaspberry Pi Active Cooler(other active coolers may fit but have not been tested), complemented by the lid ventilation slots and under-lid vents
- Full IO access- both lid options pop off without the need for tools, giving you quick and easy access to GPIO pins and DSI/CSI connectors
- Slots under lid all act as GPIO/DSI/CSI pass-through
- Low-profile- when used with the low profile cover, is just ~28mm thick
A PDF manual is available here. if you get stuck with assembly or how things click/un-click together etc,get in touchand our support team will help.
Features- Multipurpose case for Raspberry Pi 5
- Stackable design
- Accommodates Raspberry Pi Active Cooler
- Automation cover for HATs
- Includes modifiable slot cover for cables
- Low-profile cover for a compact setup
- Innovative universal mounting base:
- Wall screw mounting
- DIN Rail mounting
- Zip-tie mounting
- Ventilation slots under lid, and on the lid top surface
- Also can be used for GPIO cable pass-through
- Power button access (pin or other thin object required)
- Indication LED access
- MicroSD access
- Recess on lid for convenient sticker placement
- Tool-free assembly
- Leapmatic downloads page
- EAN:
- Black: 3800235828076
- White: 3800235828069
- 1x MaticBox 5 case, which includes:
- Main case body
- Bottom base
- Low-profile cover
- Automation cover
- Modifiable slot cover for automation cover
- Universal mounting base
Raspberry Pi 5 and Active Cooler not included
