Makeblock Optical Encoder Motor Pack-25 9V/185RPM

SKU: MB95052

$131.00 AUD, inc GST
$119.09 AUD, exc GST

More Views

Makeblock Optical Encoder Motor Pack-25 9V/185RPM
131 AUD

SKU: MB95052

$131.00 AUD, inc GST
$119.09 AUD, exc GST
In stock, with a short lead time. 75 units dispatch in 6 to 14 days (in addition to the shipping method you choose). Our timing and stock is accurate. Delivery to you by Fri, 3rd of Aug with Express Post within Australia.

Shipping:

  • $6.95 Standard (2-4 days, tracked)
  • $8.95 Express (Overnight*, tracked)
  • $3 Economy Post* (3-7 days, no tracking)
  • FREE Pickup (Newcastle only)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.



What Is Optical Encoder Motor Pack-25 9V/185RPM?

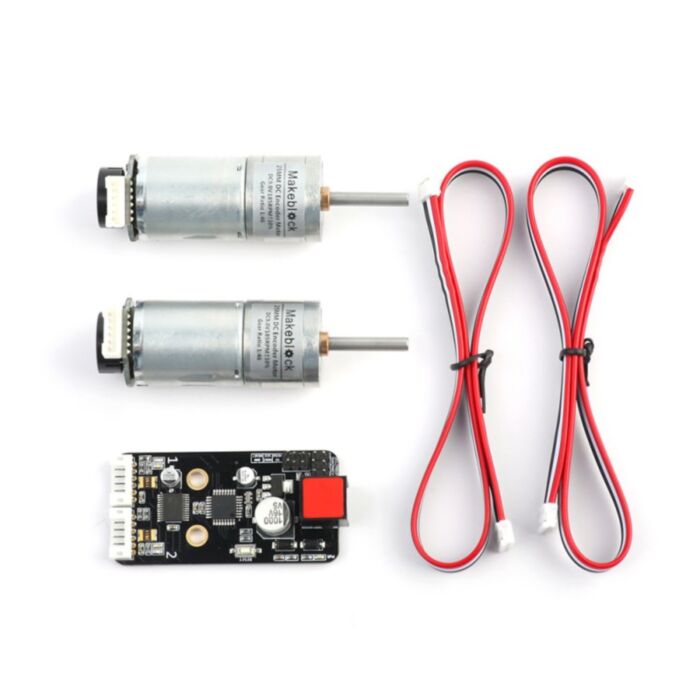

25mm Encoder DC Motor Pack includes two encoder motors, one encoder motor driver and two cables. In contrast to the DC motor, a photoelectric encoder is added into the encoder motor for detecting speed which is fed back to the signal input terminal for PID control to implement servo control for the motor.

Features

• Control the speed and displacement for the motor precisely;

• Users can customize their own PID parameter by self-contained software;

• It provides overload protection.




Note

Before using, please make sure there is enough distance between the white sensor and the black coding disk as below picture for the white sensor may be damaged by the rotating part.

Specifications

SKU 95052
Rated voltage 6.0V (DC)
Temperature range -20℃~+60℃
Humidity range 0%-90%
No-load current ≦ 200 mA
No-load speed 185±10% rpm
Rated load 0.9 Kgf.cm
Rated current ≦ 550mA
Rated speed 135±10% rpm
Starting torque 4.5kgf.cm
Locked-rotor current ≥ 2.0 A
Parts List 1 x Me Encoder Motor Driver
2 x Optical Encoder Motor-25 9V/185RPM
2 x Encoder Motor Wire
Package Dimension 200 x 140 x 30mm (7.9 x 5.5 x 1.2inch)
Net Weight 222g (7.83oz)
Gross Weight 228g (8.04oz)
