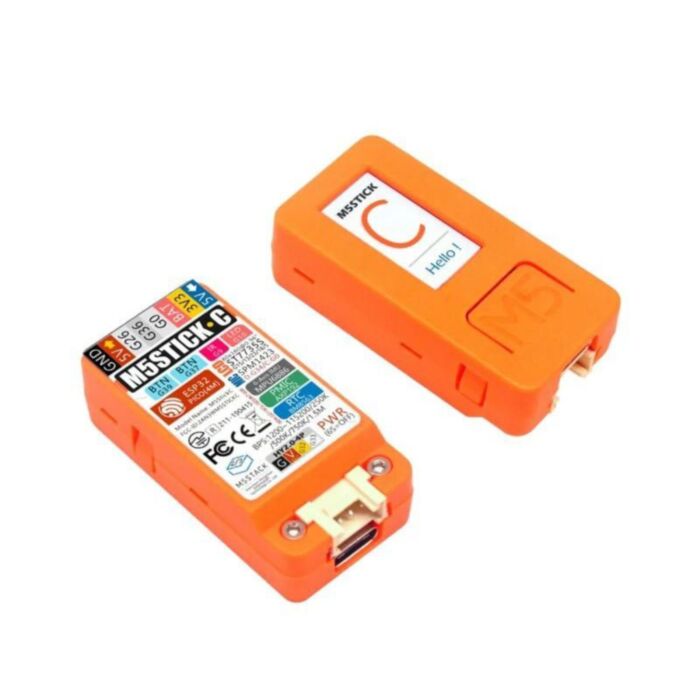

M5StickC ESP32-PICO Mini IoT Development Kit + Accessories

SKU: CE07684 Brand: M5Stack

Retired Product

Search for an alternative
We currently have limited local stock of this product and back-ordering is unavailable due to global supplier chipset shortages.
This product has been retired. It is no longer available, but this page has been kept for reference.

M5StickC is a mini M5Stack, powered by ESP32. It is a portable, easy-to-use, open source, IoT development board. What it can do? This tiny block is able to realize your idea, enlighten your creativity, and help with your IoT prototying in a very short time. It will take away a lot of pains from the development process.M5stickC is one of the core devices in M5Stack product series.

It is built in a continually growing hardware and software ecosystem. It has a lot of compatible modules and units, as well as the open source code & engineering communities that will help you maximize your benefits in every step of the developing process.

Power switch operation:

  • Power on :Press power button for 2 seconds
  • Power off :Press power button for 6 seconds

Notice:

  • Baud rate supported by M5StickC: 1200 ~115200, 250K, 500K, 750K, 1500K

Features

  • ESP32-based
  • Built-in 6-Axis IMU
  • Red LED
  • IR transmitter
  • Microphone
  • Buttons, LCD(0.96 inch)
  • Built-in Lipo Battery
  • Extendable Socket
  • Wearable & Wall mounted
  • Development Platform UIFlow, MicroPython, Arduino

Include

  • 1x M5StickC
  • 1x USB Type-C(20cm)

Applications

  • Internet of things terminal controller
  • Wearable devices
  • Stem education product
  • DIY creation

Specification

  • ESP32 240MHz dual core, 600 DMIPS, 520KB SRAM, Wi-Fi, dual mode Bluetooth
  • Flash Memory 4MB
  • Power Input 5V @ 500mA
  • Port TypeC x 1, GROVE(I2C+I/0+UART) x 1
  • LCD screen 0.96 inch, 80*160 Colorful TFT LCD, ST7735S
  • Button Custom button x 2
  • LED RED LED
  • MEMS MPU6886
  • IR Infrared transmission
  • MIC SPM1423
  • RTC BM8563
  • PMU AXP192
  • Battery 95 mAh @ 3.7V
  • Antenna 2.4G 3D Antenna
  • PIN port G0, G26, G36
  • Operating Temperature 32°F to 104°F ( 0°C to 40°C )
  • Net weight 15.1g
  • Gross weight 33g
  • Product Size 48.2*25.5*13.7mm
  • Package Size 55*55*20mm
  • Case Material Plastic ( PC )

Documents

If the drivers for the ESP32 don't automatically install you can download them here.
