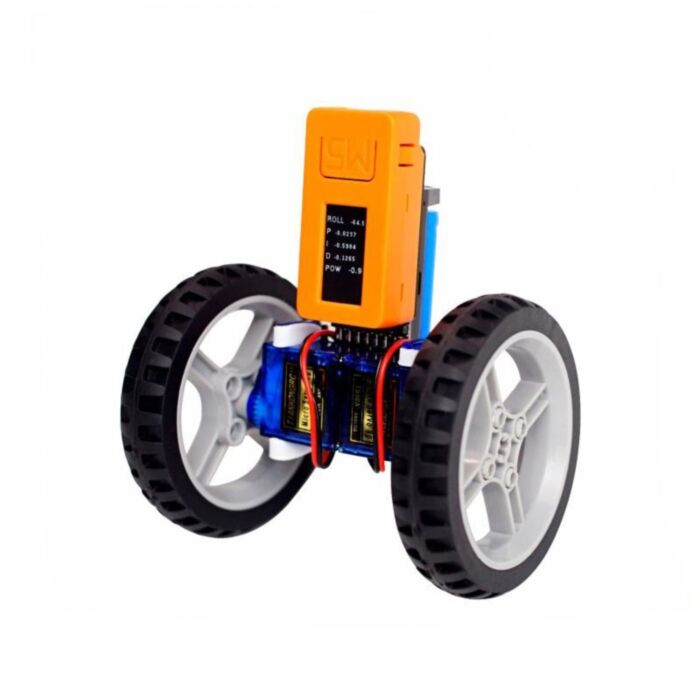

M5Stack BALA-C ESP32 Development Mini Self-balancing Car

SKU: CE07616 Brand: M5Stack

Retired Product

We currently have limited local stock of this product and back-ordering is unavailable due to global supplier chipset shortages.

This product has been replaced by: POLOLU-4991
This product is no longer available. This page is only for reference.

BalaC is a DIY dual wheel balancing car kit. BalaC uses the STM32 series chip, two motor driver ICs, and is also equipped with a rechargable replaceable battery. It incorporates a light-weight design with 360° servos. It's possible to use the UIFlow graphic interface to program the balancing car. An M5StickC is included in the package. The BalaC maintains its balance with the help of mpu6886. The real-time compensation of the servos are controlled by calculating the offset value to achieve the purpose of balancing. A LEGO compatible design allows you to change different tires. If you want to learn about PID or need an interesting programming toy product, BalaC will be a good choice

At present, there is no stock program, you will need to write the PID code by yourself.

Features

Based on ESP32 + STM32
Personality DIY
Detachable Design
Two wheel Drive
Replaceable battery
Program Platform:UIFlow, MicroPython, Arduino

Includes

1x M5StickC
1x BalaC Base
2x Wheels
2x Wheel Connectors
2x 9G Servos
2x Elastics
2x Screws
1x Hex key
1x 16340 Battery
1x 10cm Type-C Cable

Applications

Balancing car

Specification

ESP32-Pico-D4: 240MHz dual core, 600 DMIPS, 520KB SRAM, Wi-Fi, dual mode Bluetooth
Servo: Rotation angle: 360 °; no load speed: 0.12 seconds / 60 degrees (4.8V)
Driver: L9110S
Slave: STM32F030F4P6
Communication protocol: IIC: 0x38
Battery: 16340, 3.7V, 700mAh, Li-ions rechargeable
Net weight:162g
Gross weight: 206g
Product Size: 30*100*105mm
Package Size: 148*118*42mm
