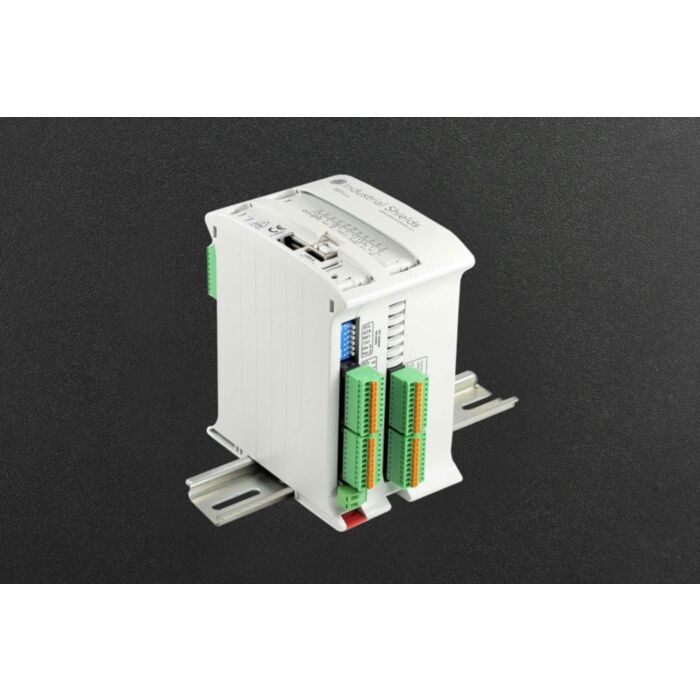

M-DUINO 21 I/Os PLUS (Optoisolated Output)

SKU: DFR0904 Brand: DFRobot

This is the first PLC equipment based on the Arduino Technology designed for a professional use. Taking Arduino Mega2560 as its core control chip, the...

$544.95 AUD, inc GST

$495.41 AUD, exc GST

Available with a lead time
Expect dispatch between Jan 19 and Jan 21

Quantity Discounts:

6+ $470.64 (exc GST)
12+ $450.82 (exc GST)

Introduction

This is the first PLC equipment based on the Arduino Technology designed for a professional use.

Taking Arduino Mega2560 as its core control chip, the M-Duino PLC has 21 I/Os including 6 analog and digital inputs, 5 digital isolated inputs, 2 interrupt isolated inputs, 3 analog outputs, 5 digital isolated outputs, and 3 PWM isolated outputs. Meanwhile, it contains several communicate ports like, UART, I2C, SPI, RS232, RS485, Ethernet, which provide more flexibility to control your device. Besides, the controller offers the possibility to expand up to 127 modules via I2C.

This PLC can be programmed using the Arduino IDE and supports remote programming through the Ethernet port. Also you can continuously monitor the status for all the variables, inputs, outputs, etc. It is compatible with the Ardbox, M-duino and the Touchberry Pi with an instantaneous connection.

Board Overview

Features

With 21 I/O interfaces
Contains several communicate ports
Supports remote programming

Specification

Mode Type: M-Duino
Power Input Voltage: 12~24Vdc (Fuse Protection (2.5A) Polarity Protection)
Input Rated Voltage: 24Vdc
Rated Power: 30W
Max Current: 1.5A
Size: 101*701*119.5mm
Clock Speed: 16MHz
Flash Memory: 256kB of which 8kB used by bootloader)
SRAM: 8KB
EEPROM: 4KB
Communication: I2C, Ethernet, USB, RS485, RS232, SPI | (2x) Rx, Tx (Arduino pins) Max232-Max485-W5500
Operating Voltage Range: 11.4~25.4Vdc
Operating Temperature: 0°C ~ 60°C
Operating Humidity: 10%~90% (No Condensation)
Operating Environment: No Corrosive Gas
Storage Temperature: -20°C ~ 60°C
Analog Input Voltage: 0 ~ 10Vac
Digital Input Voltage: 7 ~ 24Vdc
Interrupt Input Voltage: 7~24Vdc
Expandability: I2C-127 elements, serial port, RS485
Analog Output Voltage (8bit): 0 ~ 10Vac
Digital Isolated Input Voltage: 5 ~ 24Vdc

Parts List

M-DUINO 21 I/Os PLUS (Optoisolated Output) x1
