LulzBot RAMBo v1.3 Kit (with wires and connectors)

SKU: CE05534 Brand: LulzBot

Retired Product

Replaced by: Ultimaker

This product has been replaced by: Ultimaker
This product is no longer available. This page is only for reference.

RepRappers rejoice, the RAMBo v1.3 Kit (with wires and connectors) is here! This all-in-one 3D printer motherboard is made by Ultimachine, one of the most reliable and trustworthy names in the 3D printing community. Ultimachine is renowned for making high quality products and for their commitment to advancing Free Software, Libre Innovation, and Open Source Hardware.

Don't need the wires and connectors?
The RAMBo v1.3L 3D printer motherboard comes without wires and connectors!

Works with: LulzBot TAZ 6, LulzBot TAZ 5

Features

RAMBo v1.3 is built on the shoulders of the Arduino community, so hackers should consider this motherboard for additional projects beyond controlling a 3D printer. For more information about this feature-rich product, see the Specifications and Links sections of this product page.

Curious where the product's name comes from? This motherboard is a full remix of Ultimachine's popular RAMPS design, with the Arduino MEGA and stepper drivers all on one integrated PCB. Thus, the name (R)epRap (A)rduino-MEGA-compatible (M)other (Bo)ard (RAMBo) was born.

Parts Included

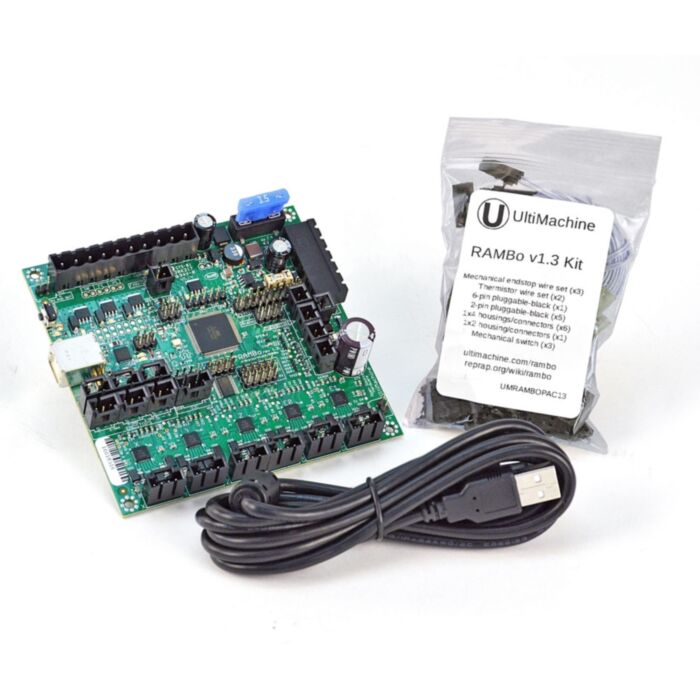

RAMBo electronics board
x3 Mechanical end stop wires
x2 Thermistor wiring with assembled plugs (thermistor not included)
x1 Six space screw terminal plug, black
x5 Two pin,pluggable connector
x6 1x4 housing/connectors
x1 1x2 housing/connectors
x3 Mechanical Endstops
USB cable

Specifications

Designed and Manufactured by Ultimachine
Logic

Arduino MEGA compatible Atmega2560 and Atmega32u2 processors are compatible with all RAMPS class firmwares
Crystals for both usb and mcu (timing accurate to 10ppm)
4 Thermistor jacks
All extra pins broken out on both processors (allows using the 32u2 for LUFA AVR programmer, etc.)
2 channel SDRAMPS compatible SPI breakout

Motor Drivers

5 A4982 1/8th microsteps motor drivers with 1,1/2,1/4,1/16 as options (2 connectors on Z for Prusa Mendel)
Digital Trimpot for stepper current control
Current limit on driver IC VCC to prevent permanent latchup
Microstep mode configured by MCU through firmware (no jumpers needed)
Test points for driver control signals
Step and Direction pins are on their own ports for synchronous movement capability
Extra driver ports broken out for up to 3 additional drivers (some of the motor extension pins are shared with max endstop and a pin allocated for SPI-SS extensions)

PWM DC outputs (Extruders, Fans, Etc.)

6 outputs
Low resistance mosfets for cool running
Indicator led for each channel

Power

Three independent power rails
Heated Bed, 15A 12-35V
Extruders + fans and logic, 5A 12-35V (fuse can be exchanged for up to 10A capacity)
Motors, 5A 12-28V (fuse can be exchanged for up to 10A capacity)
Built in SMPS for 5V generation from 10V-26V Vin

4 layer
2oz copper on all layers
High quality, High temperature FR4-TG130 PCB
Gold ENIG finishing

Fuses

2 user replaceable NANO2 fuses

Part number: 0448005.MR
F2: motors and on-board power supply
F3: extruder heater + fan outputs and logic

1 user replaceable automotive fuse

F4: automotive-type 15A ATO bladed fuse to for the heated bed
