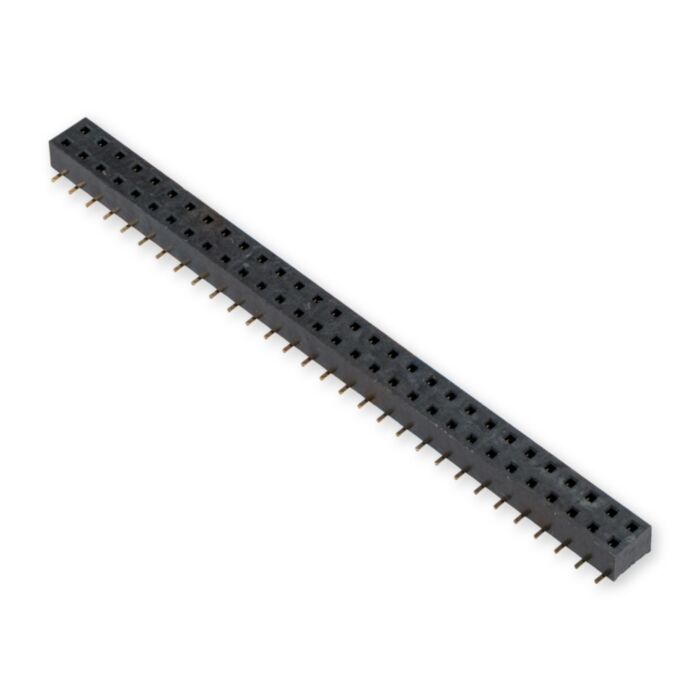

Low Profile 2x30 SMT header

SKU: CE09559 Brand: Core Electronics

Create your own low-profile board designs with these super low-profile headers!

Special Price $1.75 AUD, inc GST
Regular Price $2.50 AUD, inc GST
$1.59 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Fastest delivery: Tomorrow* Disclaimer:
The shipping address needs to be in the AusPost next day network and eParcel Express is chosen during checkout. On rare occasions, orders may be delayed by up to one business day due to AusPost pickup timings or for order verifications.

- +

496 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Looking to save some height from your designs?

This low profile header can be used to shave some height and even allow for the pins to pass through the PCB like the POE+ HAT.

Specifications

  • 4.9mm total height
  • 2x30 female pins with posts

Datasheet coming soon!
