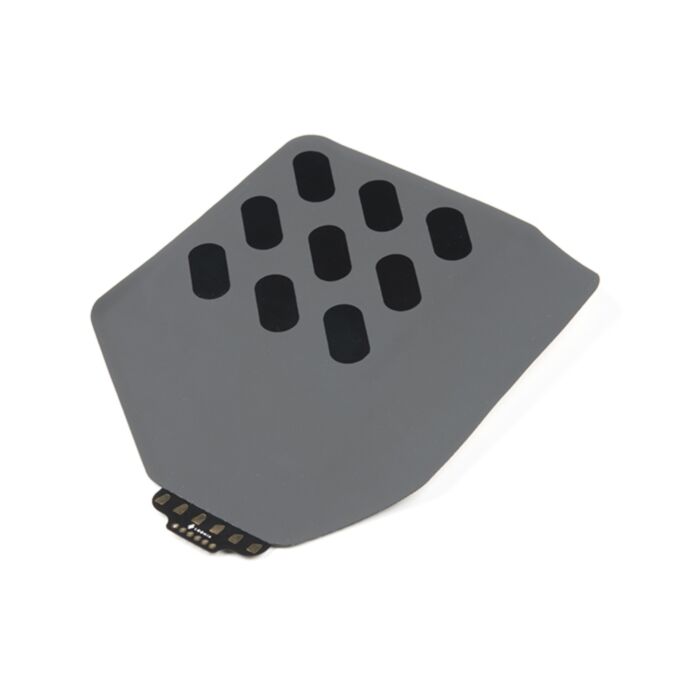

Loomia Mega Pressure Matrix

SKU: COM-17861 Brand: Sparkfun

Like the Mini Pressure Sensor... but bigger! The Loomia Mega Pressure Matrix has six leads, allowing you to map which point you are at in the 3x3 matrix and get...

$55.38 AUD, inc GST

$50.35 AUD, exc GST

Available with a lead time
Expect dispatch between May 03 and May 06

Quantity Discounts:

6+ $49.59 (exc GST)

Like the Mini Pressure Sensor... but bigger! The Loomia Mega Pressure Matrix has six leads, allowing you to map which point you are at in the 3x3 matrix and get a pressure mapping over a surface. Each area has an analog readout that varies depending on the weight of the item on the pressure sensor. Generally, sensor values will read from 500K Ohms to 100 Ohms depending on the force put onto the sensor.

Loomia parts are designed to be easily soldered together, and work well with popular micro controllers like Arduino Nano and Teensy. The system revolves around Loomia's custom interconnect, which allows for a simple connection between buses. The interconnect can be soldered to headers for easy breadboarding. From fabric to wood, Loomia components can stick onto a range of materials, making your prototypes look clean and polished.

Note: There are a number of operating procedures to be aware of before using Loomia products. This includes directions to not wash or sew any of the parts. Make sure to check the Datasheet in the Documents tab for more information.

Features

Bend Radius Limitation: N/A
Thickness: Approx. 20 mils
Operating Voltage Range: 3.7V - 5V
Pressure Range: 0.2lbs. - 10lbs.
Component Dimensions: 5in x 6.5in
Sensing Area Dimensions: 3in x 3in
