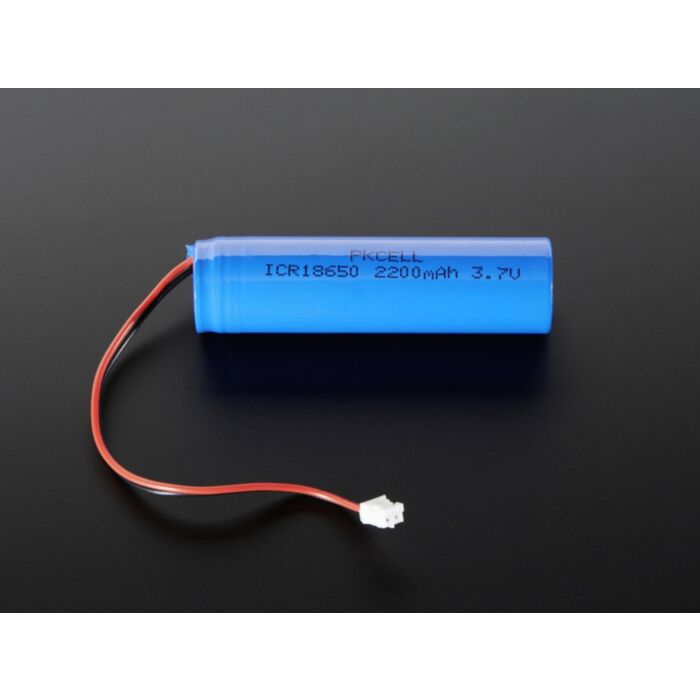

Lithium Ion Cylindrical Battery - 3.7v 2200mAh

SKU: ADA1781

$16.95 AUD, inc GST
$15.41 AUD, exc GST

More Views

Lithium Ion Cylindrical Battery - 3.7v 2200mAh

SKU: ADA1781

$16.95 AUD, inc GST
$15.41 AUD, exc GST
4 reviews 0 5 5

Retired Product

Replaced by: CE04625
This product has been replaced by: CE04625

Need a big battery for your project? This lithium ion battery contains a 2200mAh and a protection circuit that provides over-voltage, under-voltage and over-current protection. Yet, it is slim and easy to fit into many project cases.

This cell can provide 2C of peak current (4400mA). Note that these batteries are not designed to sustain such high loads, we suggest keeping any constant current draw under about 0.5C (1 Amp)

The battery comes with color coded wires, but to use with Adafruit's chargers you'll likely want to connect a JST 2-pin cable (included!). Because they have a genuine JST connector, not a knock-off, the cable wont snag or get stuck in a matching JST jack, they click in and out smoothly. The cables are rated for 2A so if you use them keep that in mind.

The included protection circuitry keeps the battery voltage from going too high (over-charging) or low (over-use) which means that the battery will cut-out when completely dead at 2.5V. However, even with this protection it is very important that you only use a LiIon/LiPoly constant-voltage/constant-current charger to recharge them and at a rate of 0.5C (1 Amp) or less.

Like most lithium-ion packs, the batteries Adafruit sell do not have thermistors built in. This is why we suggest charging at 1/2C or even less - 1A max in this case. Of course, you can charge at a lower rate - it'll just take a little longer to fill up.

Additional safety notes: Do not use a NiMH/NiCad/lead-acid charger! Also, do not abuse these batteries, do not short, bend, crush or puncture. Never charge or use unattended. Always inspect batteries and surrounding circuitry constantly for any damage, loose wiring, or possibility of short circuits. As with all Lithium ion polymer batteries and with any power source - they should be used by experts who are comfortable working with power supplies

Technical Details

  • Dimensions: 69mm x Diameter18mm
  • Weight: 46g
  • Nominal Capacity: 2200mAh ±2%
  • Nominal Cell Voltage: 3.7-3.9V
  • Standard Charge Current: ~0.2C / 0.5A
  • Max Charge Current: 1C / 2.2A
  • Charge Cut-Off Voltage: 4.2V
  • Standard Discharge Current: 0.5C / 1.1A
  • Discharge Cut-Off Voltage: 2.75V
  • Impedance: ≤35mΩ

This product is listed in:

Documentation and Resources:
  • The Maker Revolution
  • The Maker Revolution celebrates the creation of new devices and the modification of existing ones - the transition from a consumer buying goods to eventually having a major part in their creation. The Maker Revolution places strong emphasis on free (...

Product Comments


Customer Reviews

  1. Review by Derek verified purchaser
    Rating
    100

    Great safe battery option. Tested and is a true 2200mah cell. Only wish they used silicone wire instead of that hard brittle wire. (Posted on 6/06/2017)

  2. Review by Andrew verified purchaser
    Rating
    100

    Good communication and good delivery time . The Item it's self was reverse polarity for my application ( so had to change that ) and I am not sure if it has different circuitry protection , as it performs differently to the battery it replaced .
    Thanks (Posted on 19/01/2017)

  3. Review by Iain verified purchaser
    Rating
    100

    This Battery was used as a replacement in a kingone K5 Speaker, As soon as it was fitted and charged it worked and is working flawlessly. (Posted on 13/09/2016)

  4. Review by Mitch verified purchaser
    Rating
    100

    Does what I expected from it! Was the perfect form factor for a project I was working on. (Posted on 28/06/2016)
