Konashi - Computing Toolkit With BLE For iOS (Seeed Studio)

SKU: SS102990071 Brand: Seeed Studio

Retired Product

Search for an alternative

This product has been retired. It is no longer available, but this page has been kept for reference.

Konashi is a microcontroller board with a Bluetooth Low Energy (BLE) module. It is a physical computing toolkit for artists, designers and engineers who are imagining a next-generation human interface for iOS devices and tablets.

It has 8 digital input/output pins (2 of which can be used for I2C communication. All 8 pins can be used as PWM outputs.), 3analog input/output pins, and 1 UART. It contains everything needed for physical computing; simply connect it to smartphones and tablets with BLE wireless connection to get started.

“Konashi” is a traditional Japanese sweet which makers learn to make.

We chose the name for all electronics hobbyists who want to take their first step into physical computing.

FEATURES

Programming languages
- • Objective-C supported
- • SDK (Konashi-ios-sdk) is provided as an open source library.
- • Javascript supported/
- • SDK (konashi-js-sdk, konashi-bridge.js) are provided as open source libraries.
- • For easier use, konashi.js is available in APP Store (see http://konashi/ux-xu.com/kjs/).
Supports Apple iOS devices (see below Supported devices)
Bluetooth Low Energy
- • Built-in wireless module with Bluetooth Low Energy technology
- • Connect konashi with your smartphone or tablet wirelessly
Reconfigurable I/O pins
- • I/O pins and its functions is reconfigurable by application

SUPPORT DEVICES

Series Name	Model	OS
iPhone	iPhone 4S, iPhone 5, iPhone 5S	iOS6.0 〜 ( iOS7.0.4 recommended )
iPad	iPad mini (1st generation / November 2012 model) iPad mini (2nd generation / November 2013 model) iPad (4th Generation / November 2012 Model), iPad (3rd Generation / March 2012 Model) iPad Air	iOS6.0 〜 ( iOS7.0.4 recommended )
iPod touch	iPod touch (5th Generation)	iOS6.0 〜 ( iOS7.0.4 recommended )

Electric characteristics

Absolute maximum rating:

Ratings	Min	Typ	Max	Unit
Temperature range	-30.0	-	85.0	℃
External main supply voltage (*1)	3.2	-	12.0	V
Internal main supply voltage (*2)	1.8	-	3.6	V
Input voltage	1.2	-	3.6	V

• A battery terminal and USB-microB connector are called External main supply. It has a backflow prevention function and swithes a main supply into higher voltage source automatically.
• Supply voltage from lithium-ion coin cell battery.

Analog input voltage:

Ratings	Min	Typ	Max	Unit
Input voltage	0	-	1.3	V

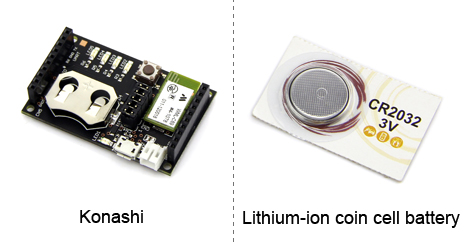

PART LIST

• 1x konashi
• 1x Lithium-ion coin cell battery: CR2032 model

DOCUMENTS

• Click to download Konashi Circuit Diagram and Layout .
• We have published all documents about the software library at the konashi official website.
