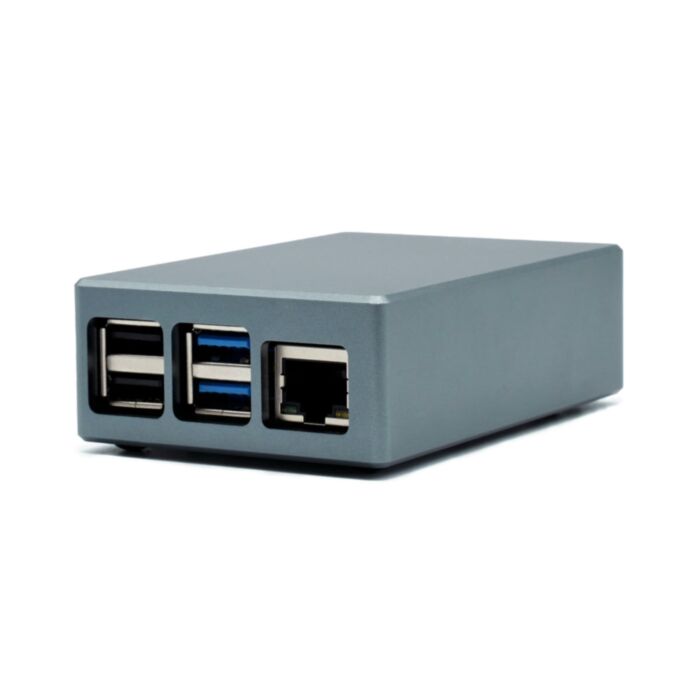

KKSB Silent Cooling Pi 4 Aluminium Case
Available with a lead time
Expect dispatch between Dec 04 and Dec 16
Quantity Discounts:
- 5-10 $45.87 (exc GST)
- 10+ $44.69 (exc GST)
The KKSB Raspberry Pi 4 Heatsink Case represents a sophisticated passive cooling solution, engineered to maintain optimal operating temperatures for the Raspberry Pi 4 board. This precision-machined aluminium enclosure transforms heat management through innovative design, making it an ideal choice for projects requiring sustained performance without the noise of active cooling.
Key Features
- Precision-machined aluminium construction for superior heat dissipation
- Passive cooling design eliminates noise and moving parts
- Integrated thermal pad system for direct contact with processor
- Compatible with all Raspberry Pi 4 models including 1GB, 2GB, 4GB, and 8GB variants
- Access ports for all essential connections including GPIO, camera, and display interfaces
- Tool-free assembly design for quick installation
Technical Specifications
- Material: CNC machined aluminium
- Cooling Method: Passive convection
- Thermal Interface: Pre-applied thermal compound
- Mounting: Tool-free installation system
- Access: Full port accessibility including:
- Dual micro-HDMI ports
- USB-C power input
- Ethernet port
- USB 2.0 and 3.0 ports
- 40-pin GPIO header
Installation
- Remove any existing cooling solution from your Raspberry Pi 4
- Clean the processor surface thoroughly with isopropyl alcohol
- Remove the protective film from the pre-applied thermal compound
- Align the Raspberry Pi 4 with the mounting points in the bottom section of the case
- Carefully lower the board into position, ensuring proper alignment with all ports
- Secure the top section of the case until it clicks into place
What's in the Box
- KKSB Aluminium Heatsink Case
- Pre-applied thermal compound
- Installation guide
Compatibility
| Device | Compatibility |
|---|---|
| Raspberry Pi 4 Model B (All RAM variants) | Full |
| Raspberry Pi 3 Model B+ | Not Compatible |
| Raspberry Pi 5 | Not Compatible |
Recommended Power Supply
For optimal performance, use with the official Raspberry Pi 4 Power Supply (5.1V 3A), which ensures stable power delivery under sustained loads. The case design accommodates the official power supply without modification.
About KKSB
KKSB specialises in developing premium thermal management solutions for single-board computers. Their products are recognised for precision engineering, innovative design, and reliable performance in demanding applications. Each product undergoes rigorous testing to ensure optimal thermal performance and compatibility.
This product is listed in:
Raspberry Pi>Model B Cases (v4)>Passive CoolingRaspberry Pi>Model B Cases (v4)>Accessories
