IPS Touch Display with Speakers for Raspberry Pi - 10.1 Inch

SKU: LCD-21318 Brand: Sparkfun
This is a 1024 x 600 resolution IPS display touchscreen for the Raspberry Pi...
$253.58 AUD, inc GST
$230.53 AUD, exc GST

Quantity Discounts:

  • 3+ $227.07 (exc GST)

Out of Stock

Sign up to get notified when it's available to order.

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

The Wimaxit 1024 x 600 resolution IPS display touchscreen for the Raspberry Pi is an excellent choice for those who need more screen than the 7" Touchscreen offered by Raspberry Pi. The touchscreen supports up to a five-point touch interface and is already integrated in the screen. The controller board is included in the panel and features a way to mount a raspberry pi The display has plenty of mounting options or included feet for it to stand on it's own.

Beyond it's uses with the Raspberry Pi, it can be used in general as an HDMI display with any HDMI devices (It will require it's own power source in this configuration). The display also comes with two speakers which mount to the back of the display and are integrated into the HDMI interface. A backlight/volume adjustment button is also integrated into the HDMI functionality. It's a great solution for Kiosk type projects with the Raspberry Pi, but also holds great functionality with other HDMI devices as well.

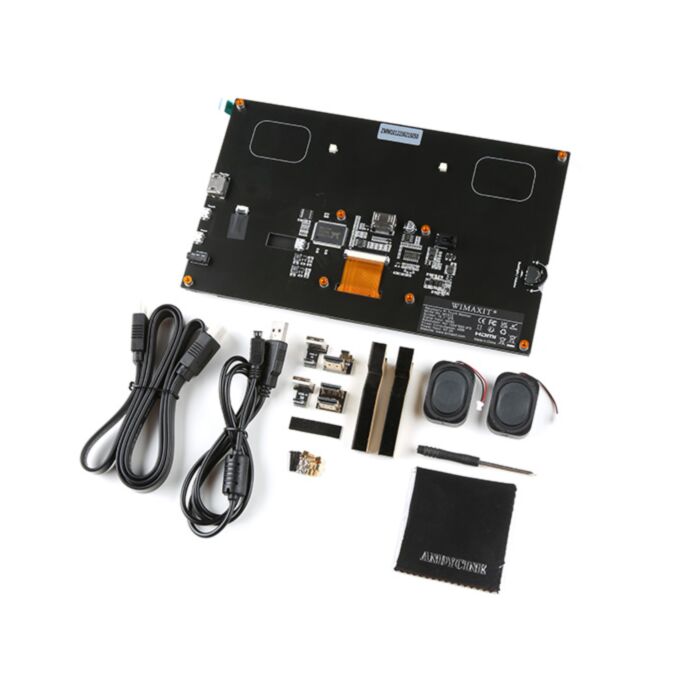

Includes

  • 10.1" Touchscreen Display for Raspberry Pi
  • 2 Speakers with adhesive mounting
  • 2 Acrylic stand legs
  • Adapters (2 sets for both the Pi 4 and Pi 3)
    • Micro HDMI to HDMI
    • USB-A to USB Micro B
  • Cables
    • USB A to USB Micro B
    • HDMI Cable
  • Raspberry Pi Mounting Screws and Leg Mounting Screws
  • Screwdriver
  • 1 Year Manufacturer Warranty

Features

  • 10.1" Touchscreen Display
    • 1024x600
    • 16:9
    • IPS
  • 5 Point Touch Functionality
  • Stereo Speakers (separate but with adhesive backing)
  • Will draw Power From the Raspberry Pi (the ability to power the whole system through 1 cable)
  • Mounting Points for the Raspberry Pi Model B Mounting holes
  • 2 x HDMI Inputs
  • 3 x Micro-USB Inputs (Power and Touch)
  • 1 x 3.5mm Jack Audio Output
