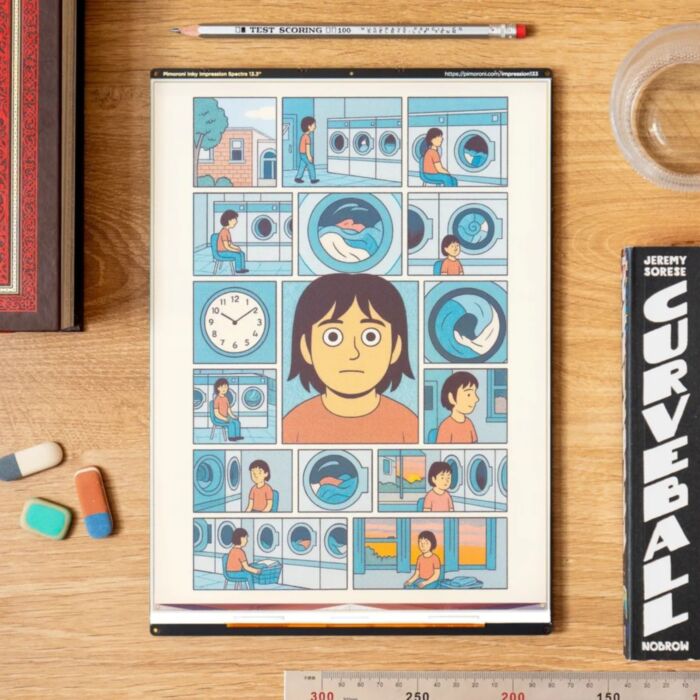

Inky Impression – 13.3"
Put an A4-sized, six-colour paper-like display on your Raspberry Pi. Crisp in sunlight, and it only draws power when the picture changes.
Available with a lead time
Expect dispatch between Oct 06 and Oct 12
Quantity Discounts:
- 10+ $529.53 (exc GST)
- 50+ $496.43 (exc GST)
A near-A4 canvas of colour E Ink for your Raspberry Pi: 1600 x 1200 pixels across a 13.3" panel that only changes when you tell it to, and draws no power in between.
Always-on displays usually mean a glowing LCD, or OLED and a constant power draw. This one uses E Ink Spectra 6 technology, reflecting ambient light like printed paper, so it stays readable in a sunlit room, adds no light at night, and holds its image with the power off. That makes it a natural fit for wall-mounted dashboards, calendars, weather stations and digital art frames.
The board measures 297 x 210 mm, the same as an A4 sheet, so it can drop straight into an off-the-shelf A4 picture frame. It arrives fully assembled with the panel bonded to the PCB, and it plugs onto any Raspberry Pi with a 40-pin header, with no soldering required.
Getting started
Holding the board by its edges (the panel is glass), fit the standoffs and seat your Raspberry Pi on the 40-pin header. Add the included extension header for full-size Pi boards.
Run Pimoroni's installer to set up the Inky Python library.
Push images or text to the display from Python; the library handles dithering to the six-colour palette for you.
Features
Photos and artwork well beyond black-and-white ePaper, with six saturated colours (red, green, blue, yellow, black and white) from E Ink Spectra 6
Sharp text and fine detail, thanks to 1600 x 1200 resolution at 150 PPI
Uses power only during a refresh, so an image can stay up indefinitely on a small energy budget
Easy on the eyes, readable under bright light and from ultra-wide viewing angles, with no backlight to cause glare
Cycle images or trigger actions without extra hardware, using four rear-mounted buttons
Add sensors and breakouts over I2C via Qw/ST (Qwiic/STEMMA QT) connectors, plus an expansion header for other hardware
Mount it cleanly in enclosures and frames with M2 holes at each corner
Fits securely on full-size Raspberry Pi boards and Zero/A variants, with standoffs and a 40-pin extension header included
Specifications
Property | Specification |
|---|---|
Display size | 13.3" diagonal |
Resolution | 1600 x 1200 pixels |
Display technology | E Ink Spectra 6 |
Colours | 6 (red, green, blue, yellow, black, white) |
Pixel density | 150 PPI |
Dot pitch | 0.169 x 0.169 mm |
Aspect ratio | 4:3 |
Board dimensions (W x H) | 297 x 210 mm |
Usable display area (W x H) | 270.4 x 202.8 mm |
Refresh time | 12 s core panel refresh (at 25–50°C); 20–35 s typical full cycle including data transfer |
Recommended operating temperature | 0–50°C |
Interface | Raspberry Pi 40-pin header (SPI) |
Buttons | 4, rear-mounted |
Expansion | Qw/ST (I2C) connectors, expansion header |
Mounting | M2 holes at each corner |
Touchscreen | No |
Compatibility | All Raspberry Pi computers with a 40-pin header, including Zero variants |
Resources
What's Included
1x Inky Impression 13.3" display board
1x 40-pin extension header
Standoffs and mounting hardware for Raspberry Pi
