Industrial USB TO 8CH TTL Converter - USB to UART

SKU: WS-27076 Brand: Waveshare

Industrial USB TO 4CH TTL Converter, USB To UART, Multi Protection Circuits, Multi Systems Support...

$44.90 AUD, inc GST

$40.82 AUD, exc GST

Available with a lead time
Expect dispatch between Dec 02 and Dec 04

Quantity Discounts:

10-25 $39.59 (exc GST)
25+ $38.78 (exc GST)

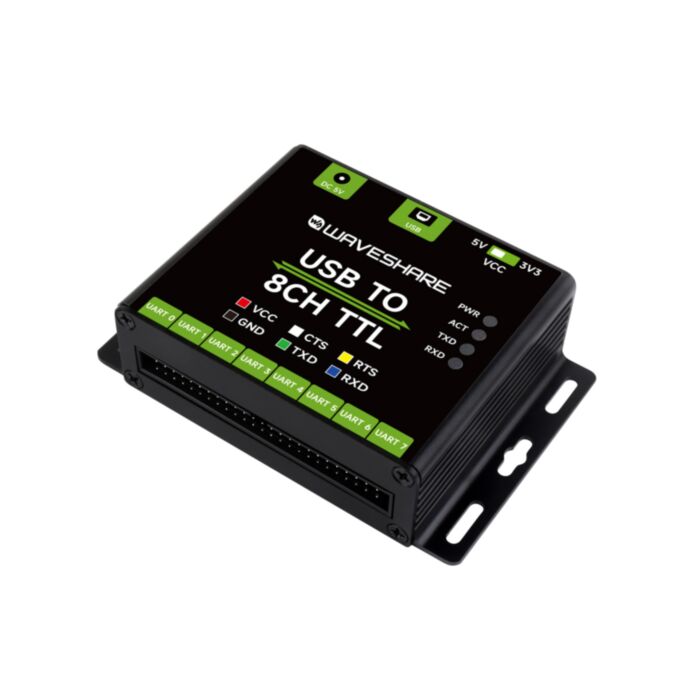

The device extends USB functionality to an 8-channel TTL (UART) configuration with hardware flow control, facilitating concurrent and independent communication across each channel. It features an onboard self-recovery fuse and protection diodes to maintain stable current and voltage outputs, offering protection against over-current and over-voltage situations, and enhancing shock resistance. There is also an onboard Transient Voltage Suppressor (TVS) that mitigates surge and transient spike voltages, offering lightning and ESD protection. The device is encased in a durable CNC aluminum alloy enclosure with an oxidation dull-polished finish. Four LEDs indicate power and transceiver status for easy monitoring.

Specifications

Baudrate: 1200bps to 2M
USB Specifications:
- Operating Voltage: 5V
- Connector: USB-B
- Protection: 200mA self-recovery fuse, ESD protection
Power Supply:
- Connector: 5V DC power jack
- Protection: Over-voltage protection and anti-reverse protection
TTL (UART) Specifications:
- Connector: 50PIN anti-reverse header
- Protection: TVS diode, surge protection, and ESD protection
- TTL Level: 3.3V/5V (configurable)
Indicators:
- PWR: Power indicator, lights up red when there is USB connection and voltage is detected
- ACT: Status indicator, lights up green when the driver is detected
- TXD: TX indicator, lights up when the USB port sends data
- RXD: RX indicator, lights up when the device ports send data back
Operating Environment:
- Temperature: -40°C to 85°C
- Humidity: 5%RH to 95%RH
Operating System Compatibility: Mac, Linux, Android, Windows 11 / 10 / 8.1 / 8 / 7

USB TO 8CH TTL Converter, interface introduction

Pinout

Dimensions Documents

Wiki

Shipping list

1 x USB TO 8CH TTL
1 x USB cable (~1.2m)
1 x 50PIN squid wire

This product is listed in:

Programmers>USB to Serial (UART)
