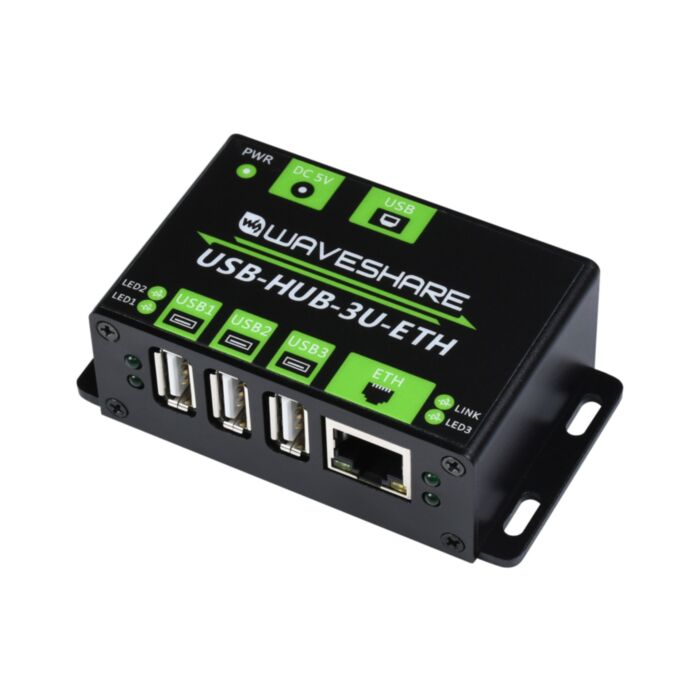

Industrial USB Hub (3 Port HUB with Ethernet Interface)

SKU: WS-23064 Brand: Waveshare
Industrial Grade Multifunctional USB HUB, Extending 3x USB ports + 100M Ethernet Port...
$26.16 AUD, inc GST
$23.78 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 15th of Oct

Quantity Discounts:

  • 10+ $23.43 (exc GST)
- +

6 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Industrial Grade Multifunctional USB HUB, Extending 3x USB ports + 100M Ethernet PortFeatures at a glance

Features

  • 3x extended USB ports, compatible with USB 2.0 / 1.1
  • Onboard RTL8152B Ethernet chip, adapting RJ45 network port, 10/100M adaptive
  • Industrial grade HUB chip, adopting STT technology, allows stable and smooth concurrent USB connections
  • ESD protection for each USB port, preventing electric surge damage and data loss
  • Onboard large-capacity electrolytic capacitor, effectively making the power supply output of the USB port more stable
  • Over-voltage protection, effectively preventing other high voltage power input from damaging the connected devices
  • Multiple protection circuits: over-voltage, over-current, short circuit, over-temperature, reverse current, under voltage lock-out, 8KV ESD protection, filtering protection, etc.
  • LED indicators for monitoring operating statuses of power supply, network port and USB ports
  • Industrial grade metal case, rugged & durable, with mounting holes for easy installation

Specifications

USB Port USB 2.0 Port x 3, theoretically up to 480Mbps
Ethernet Network Interface 10/100 adaptive
USB HUB input operating voltage: 5Vconnector:USB-B
USB output

operating voltage: 5V @ Imax:1.2A for each USB Port

connector:USB-A

External power power supply voltage: DC 5V connector:DC 2.1mm jack
Operating environment -40C ~ 85C
OS support Mac OS (8.6 or above), Linux(2.4.20 or above), Windows 11 / 10 / 8.1 / 8 / 7 / XP



Dimensions





Resources

Wiki for 3 Port Industrial USB Hub



Shipping List

  1. Industrial USB Hub (3 Port HUB with Ethernet Interface) x1
  2. USB cable ~1.2m x1
