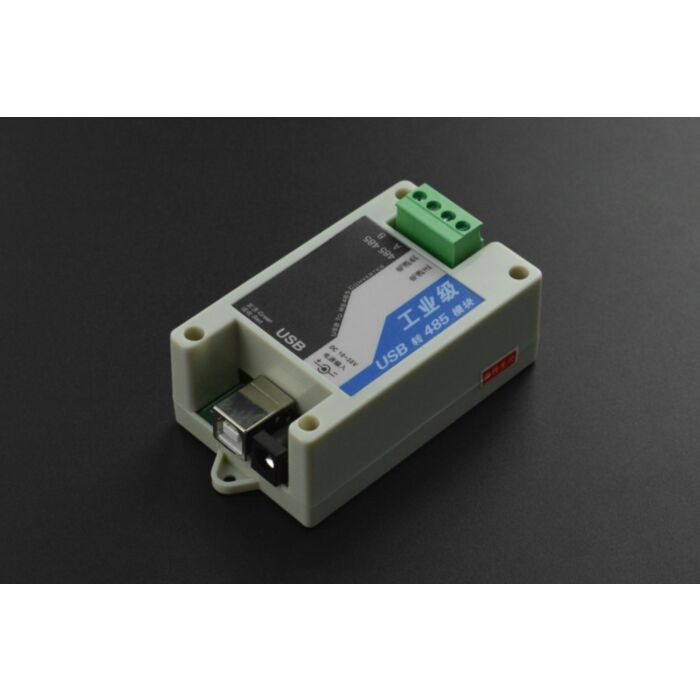

Industrial USB To RS485 Converter

SKU: FIT0832 Brand: DFRobot

This is an industrial-grade USB to RS485 module with DC voltage output of up to 36V, which is applicable to industrial instruments that require...

$29.60 AUD, inc GST

$26.91 AUD, exc GST

Available with a lead time
Expect dispatch between Jan 23 and Jan 27

Quantity Discounts:

10-25 $26.10 (exc GST)
25+ $25.56 (exc GST)

Introduction

This is an industrial-grade USB to RS485 module with a DC voltage output of up to 36V, which is applicable to industrial instruments that require a high-voltage power supply.

The converter can be directly powered by the USB bus, no external power supply required.

Industrial Isolated USB To 485 Converter

With strong compatibility, this USB to RS485 converter conforms to the USB 2.0 standard (downward compatible) and the RS485 standard, and supports Systems like Windows 98/ME/2000/XP/7/8/10/Vista, Mac and so on.

Industrial Isolated USB To 485 Converter

The module comes with built-in 15KV ESD protection and a maximum of 600W lightning surge protection. In terms of over-current and over-voltage protection, it adopts self-recovery fuse + TVS protection circuit to effectively extend the service life of the module.

Industrial Isolated USB To 485 Converter

Featuring plug-and-play and hot-swappable, the USB to RS485 module has onboard indicators for visually displaying Rx/Tx communication status. It offers adaptive data communication rate from 300 to 921.6kbps.

Industrial Isolated USB To 485 Converter

Features

Plug-and-play

Hot-swappable

Built-in lightning surge protection

Specification

Baud Rate: 300~921.6kbps adaptive

Applicable System: Windows 98/ME/2000/XP/7/8/10/Vista, Mac, etc.

Maximum Input Voltage: 36V

Support over-current, over-voltage, reverse connection protection

Size: about 96*50*31mm / 3.78*1.97*1.22 inch

Documents

RS-USB-485-3USB-to-485-Module-Drive

Parts List

Industrial USB to RS485 Converter x1

Data Cable x1
