ICE Tower CPU Cooling Fan for Raspberry Pi

SKU: SS114992048 Brand: Seeed Studio

Retired Product

Replaced by: CE08475

This product has been replaced by: CE08475
This product is no longer available. This page is only for reference.

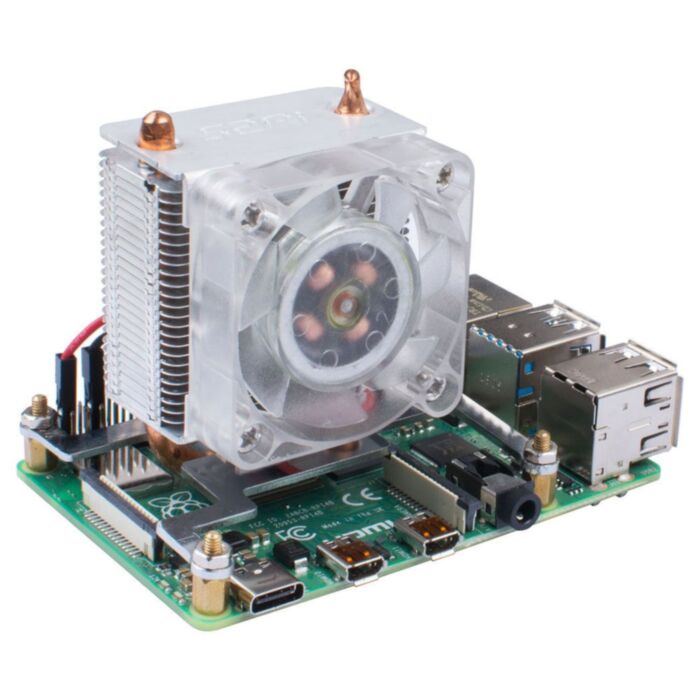

Meet this colorful, shining, blink super Raspberry Pi ICE Tower CPU Cooling Fan!

Well, as you may know, this Blink Blink ICE Tower CPU Cooling Fan for Raspberry Pi is the RGB version of our ICE Tower CPU Cooling Fan for Raspberry Pi.

The cooling tower includes a 5mm copper tube with multi-layer heat sinks to conduct heat away from your Pi and into a 7 bladed powerful 5V fan. This combination makes this device an excellent radiator for Raspberry Pi. In the case of overclocking, it can reduce the temperature of the Raspberry Pi from 80℃ to 40℃ when running the same processes. Amazing! Best of all, this cooling fan supports the new Raspberry Pi 4 Model B. With the help of this superfan, the performance of the Raspberry Pi 4 when being pushed to its limits will increase dramatically.

This superfan is designed by 52Pi. 52Pi is a leading Raspberry Pi accessories manufacturer, specializing in the design and production of various hats, screens, and accessories for the Raspberry Pi.

Mounting Guide and Evaluation

Special thanks for ETA PRIME to share this video with us.

Attention

In the heat dissipation test mentioned above, the temperature was lowered from 80 ° C to 40 ° C. The test conditions are as follows: 1-Room temperature 25 ° C / 2- Apply silicone grease directly to the heat sink and processor chip / 3- Raspberry Pi 4 processor overclocking

The final cooling effect may vary depending on the test conditions. Due to shipping restrictions, we did not equip the accessories with silicone grease. If you use the thermal conductive tape in the accessory, you can reduce the temperature from 80 ° C to 48 ° C under the same conditions. It can be seen that the use of silicone grease is better. If you want to achieve the best heat dissipation, we recommend that you purchase silicone grease yourself or here at Core, you can use our thermal tape in addition to that supplied if you need custom sizes.

Tip: This product does not include the Raspberry Pi, the product image is only for display, you can purchase all of the listed models of the Pi at Core Electronics

Features

Supports the Raspberry Pi 4 Model B, Raspberry Pi 3 Model B, and the Raspberry Pi 3 Model B+
Simple DC 5V Power in from two 0.1" Jumpers (can be powered by 2nd and 6th pins on the Raspberry Pi)
5mm copper tube for extra conductivity to the heatsinks
Rated power 0.4W @5V, 0.08A significantly less than the maximum draw of the Pi leaving plenty of current potential on the rail for peripherals

Part List

2 x Steel Mounting Fixer (Fit for Raspberry Pi 3B+/4B)
1x Ice tower CPU fan
9x M2.5 5mm copper standoffs
7x M2.5 4mm screws
5x M2.5 Nuts
3x Thermal Conductive Tape
1x Screwdriver

(There's excess standoffs, bolts, and screws)

parts list

Dimensions
