Humidity sensor - HH10D

SKU: SEN-10239

$15.86 AUD, inc GST
$14.42 AUD, exc GST

More Views

Humidity sensor - HH10D
15.86 AUD

SKU: SEN-10239

$15.86 AUD, inc GST
$14.42 AUD, exc GST
1 reviews 0 5 5
Shipping Offer

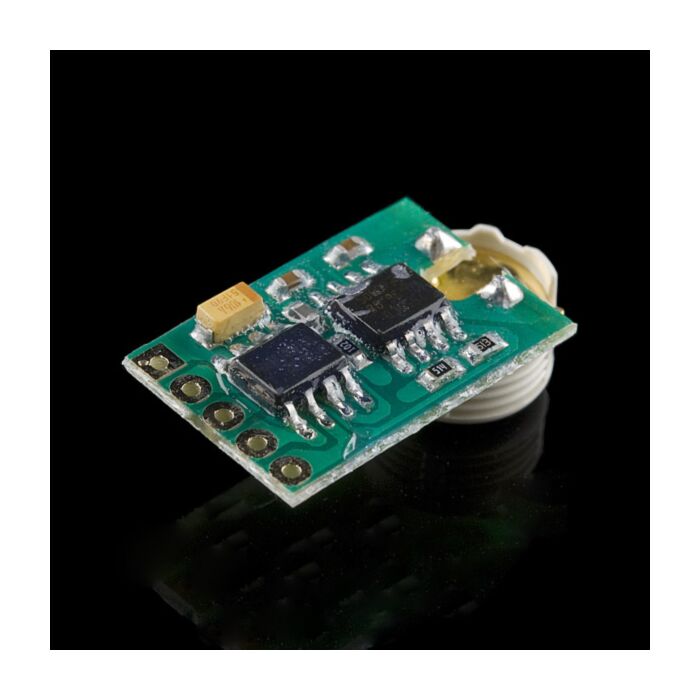

The HH10D relative humidity sensor module is comprised of a capacitive type humidity sensor, a CMOS capacitor to frequency converter and an EEPROM used to hold the calibration factors. Due to the characteristics of capacitor type humidity sensor, the system can respond to humidity change very quickly. Each sensor is calibrated twice at two different accurate humidity chambers and two unique sensor related coefficients are stored onto the EEPROM on the module.

Features:

  • I2C interface
  • 2.7-3.3V Input
  • 150uA current consumption
  • -10 to 60 degrees C temperature range
  • +-3% accuracy

Documents:

Documentation and Resources:

Product Comments


Customer Reviews

  1. Review by Andrew verified purchaser
    Rating
    100

    This unit replaced the original sensor in my weather station and performed without fault. The changeover was seamless. (Posted on 24/08/2016)
