Home Assistant Yellow Standard

SKU: SS113060066 Brand: Seeed Studio

The Home Assistant Yellow Kit with Power Supply is a smart home hub powered by Raspberry Pi CM4 that has over 2,500 built-in integrations and supports...

$539.95 AUD, inc GST

$490.86 AUD, exc GST

Quantity Discounts:

3-6 $471.23 (exc GST)
6+ $456.50 (exc GST)

Out of Stock

Restrictions apply to this equipment as it uses button/coin cell batteries:

The equipment is intended to be used in trades, professions or industries
The equipment is not intended for sale to the general public
The equipment is not intended to be used where children are present
You are aware that this equipment may not meet child safety testing requirements as it is not intended to be used by consumers or general public, but rather, is intended to be used in trades, professions or industries in conjunction with the limitations and restrictions listed above
You are aware that these restrictions are due to a change in A ustralian legislation in 2022 for button/coin cell batteries

Button Battery Warning

A declaration of use will need to be submitted during checkout.

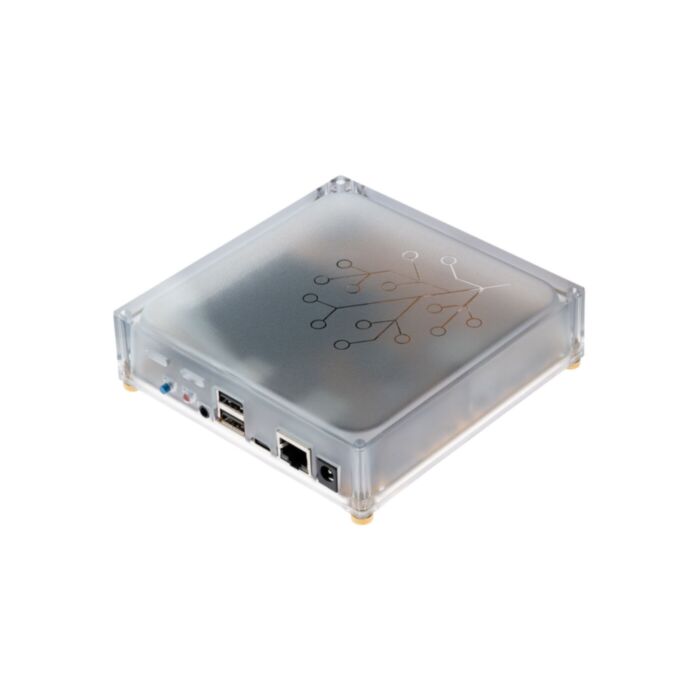

The Home Assistant Yellow Kit with Power Supply is a smart home hub powered by Raspberry Pi CM4 that has over 2,500 built-in integrations and supports hundreds of thousands of devices and services for easy control of various aspects of your home with powerful automation capabilities, energy consumption tracking, and the latest Zigbee radio chip for smart home connectivity.

Features

Ready-to-use and Fully-supported Home Assistant: One software controls the integration with over 1,000 different devices and services, making it really help people control various aspects of the home like lights, thermostats, TV, music, and more
Pre-installed Home Assistant OS on equipped Raspberry Pi CM4 Module: Provide the pre-installed Home Assistant OS for ready-to-use and offer 2GB RAM and 16GB eMMC storage
Powerful Automation Capabilities: Offer automation editor for customization while providing pre-made automation blueprints contributed by the Home Assistant community
High Expandability and Scalability: Equip M.2 slot supporting NVMe SSD hard drive, provide smart-home wireless that supports Zigbee 3.0, OpenThread, and Matter
Open-source Development Board: Provide full control without vendor lock-in and protect data by storing everything locally

Home Assistant Yellow Kit with Power Supply is a smart home hub powered by Raspberry Pi CM4. It is a ready-to-use and fully supported Home Assistant has over 2,500 built-in integrations and supports hundreds of thousands of devices and services Integrations - Home Assistant, making it really help people control various aspects of the home like lights, thermostats, TV, music, and more.

The device has the Raspberry Pi CM4 module pre-installed, providing 2GB RAM and 16GB eMMC storage. It also comes with pre-installed Home Assistant OS for users ready-to-use.

This board has equipped powerful automation capabilities by offering an automation editor to users and helping them create intelligent rooms, buildings, or parks. There are also available Latest Blueprints Exchange topics - Home Assistant Community contributed by the Home Assistant community, for users directly using it.

It only requires one software to manage all the equipment. Meanwhile, there are also services that can be used in the Home Assistant Demo and automation for users to get information about the commute like the air quality in the area, or the latest currency exchange rates. Paired with supported sensing hardware, it enables people to monitor their energy usage and trends over time, offering Home Energy Management - Home Assistant and management.

The Home Assistant Yellow Kit with Power Supply includes the latest Zigbee radio chip from Silicon Labs, which is forward-compatible with the upcoming Matter smart home connectivity standard.

It includes an M.2 expansion port for NVMe SSD hard drive for expanding available space. It contains a gigabit Ethernet, 2 USB 2.0 Type-A host ports, and 1 USB-C 2.0 device port. It also has a high-quality stereo audio DAC with a 2V RMS line out on a 3.5mm audio jack.

Note

The version of CM4(CM4002016) on the board is not equipped with wireless ability.

Applications

Smart Home Automation
Energy Management
Home Security
Health Monitoring
HVAC automation
Home entertainment automation
Environmental monitoring

Specifications

Specification	Value
Board Size	12 cm x 12 cm
Processor	Quad-core Cortex-A72 (ARMv8) 64-bit / 1.5 GHz
RAM	2GB
Storage	16 GB eMMC
Expansion Slot	M.2 socket for NVMe SSDs (2230, 2242, 2260, 2280)
PCIe	PCIe x1
Ethernet	Gigabit Ethernet
PoE Supported	-
USB Ports	2 x USB 2.0 Type-A host port, 1 x USB-C 2.0 device port
Audio	High-quality stereo audio DAC
Wireless	Silicon Labs MGM210P Mighty Gecko Module
Wireless Protocols	Zigbee 3.0, OpenThread, and Matter
Wireless Radio	-
Pre-installed Firmware	Zigbee 3.0 (EZSP), can be upgraded
Power	12 V / 2 A through barrel DC power jack
LEDs	Green (Power), Red (Disk usage), Yellow (Home Assistant system state)
Buttons	Red (Factory reset), Blue (To be determined)
RTC	Backed by CR2032 battery
Enclosure	Translucent injection-molded polycarbonate plastic Tool-free assembly Accommodates custom heat sink (included)
Enclosure Size	123 mm x 123 mm x 36 mm
Typical Power Usage	Idle ~1.5 W, Idle with NVMe ~2.5 W, Load ~5-9 W

Hardware Overview

Part List

Home Assistant Yellow Board	x1
Raspberry Pi CM4002016(pre-installed)	x1
Accommodates custom heat sink	x1
Translucent injection-molded polycarbonate plastic	x1

Documentation

Home Assistant
