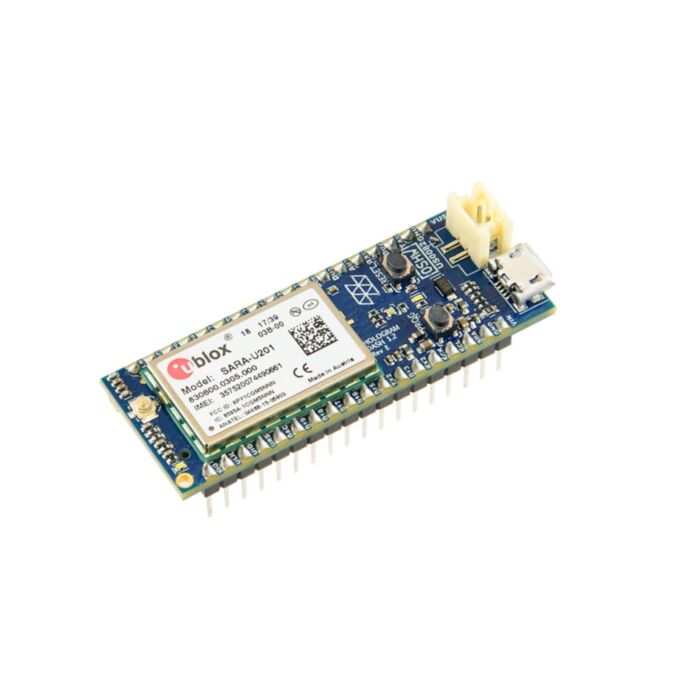

Hologram Dash

SKU: CE05454 Brand: Hologram

Retired Product

Replaced by: CE05455
This product has been replaced by: CE05455
This product is no longer available. This page is only for reference.

A cellular connectivity board pre-certified for end use equipped with Hologram's networking firmware.

ACCELERATE YOUR PRODUCT DEVELOPMENT

Create a new connected device in minutes rather than months with the Dash's out-of-the-box cellular connectivity, Arduino IDE compatibility, and available I/O interfaces.

FOCUS ON YOUR CORE PRODUCT EXPERIENCE

Spend less time building out connectivity infrastructure and more time building your core product.

STREAMLINE PRODUCT TESTING

Avoid longer testing and certification cycles by embedding our certified Dash hardware in your product.

ZERO SETUP CELLULAR IOT GATEWAY

Send your data to the cloud with a single line of code, our Dash firmware takes care of the rest.

ARDUINO IDE COMPATBILITY

Leverage Arduino development resources to accelerate your speed-to-market.

FULLY PRE-CERTIFIED END DEVICE (FCC/PTCRB/GCF)

Rest assured that you're building a product on a platform that's been tested and pre-certified.

OVER THE AIR UPDATES FOR YOUR CODE

Update your deployed products in the field with your own program and our latest firmware through the Dash's OTA feature.

Technical specifications

  • Cellular Module: Ublox Sara U201
    • 2G: GPRS/EDGE, 3G: UMTS/HSPA
    • U201 Global Quad-band 850/900/1800/1900 MHz
  • u.FL Antenna Connector
  • Nano SIM card holder
  • Cortex M4 microcontroller (User Module)
    • MK22FN1M0VLH12A 120MHz
    • 1MB flash, 128KB RAM
  • Cortex M0+ microcontroller (System Module)
    • MKL17Z256VFM4 48MHz
    • with 256KB flash, 32KB RAM
  • 25 GPIO (I2C, SPI, UART, CAN, analog)
  • Onboard battery management & charging
  • JST battery connector
  • USB Micro
  • Debug LED
  • Programming switch
  • User/Sytem module reset switches
  • 55mm x 20mm x 9mm / 2.2" x 0.8" x 0.6" Dimensions w/Components
  • 55mm x 20mm x 16mm / 2.2" x 0.8" x 0.3" Dimensions of PCB
  • 9.0g Weight
