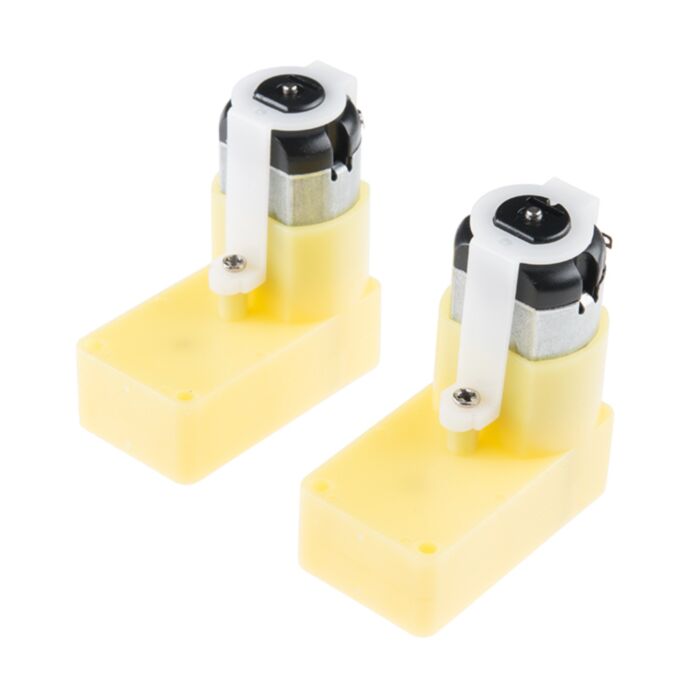

These are a pair of right angle, hobby gearmotors from DAGU. These gearmotors are the same ones utilized in the Magician Chassis and RedBot Kit and offer a cheap and easy to use setup to get your wheels turning. Due to these gear motors being at a right angle, you will also be able to track and control the rotation of your wheels!
Each gearmotor requires a voltage of 3-6V with a no load current of 200mA while possessing a stall current of [email protected] ([email protected]), a gearbox ratio of 48:1, and a wheel speed of 65 rpm at 3V unloaded.
These gearmotors are sold in packs of two.
- Voltage: 3V – 6V
- No Load Current: 200mA
- Stall Current: 3A @ 6V (1.5A @ 3V)
- Gearbox Ratio: 48:1
- Wheel Speed: 65rpm @ 3V unloaded (Recommended)
Documentation and Resources:
