Himax CMOS Imaging Camera - HM01B0

SKU: SEN-15570 Brand: Sparkfun

Retired Product

Search for an alternative

This product has been retired. It is no longer available, but this page has been kept for reference.

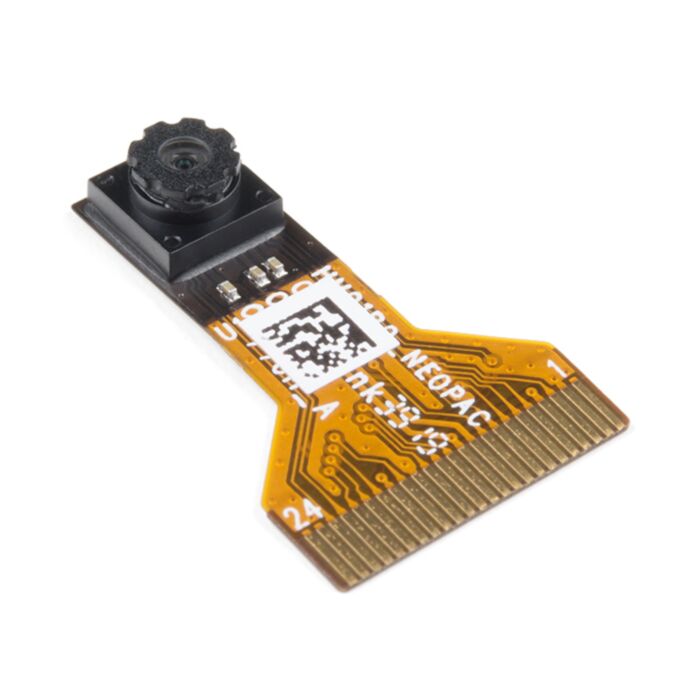

The HM01B0 from Himax Imaging is an ultra low power CMOS Image Sensor that enables the integration of an “Always On” camera for computer vision applications such as gestures, intelligent ambient light and proximity sensing, tracking and object identification. The sensor allows the sensor to consume very low power of <2mW at QVGA 30FPS. This low power consumption and vision applications make this camera the perfect pair for the SparkFun Edge Development Board and comes with a ribbon cable that mates to the camera connector populated on the Edge board.

The HM01B0 contains 320 x 320 pixel resolution and supports a 320 x 240 window mode which can be readout at a maximum frame rate of 60FPS, and a 2×2 monochrome binning mode with a maximum frame rate of 120FPS. The video data is transferred over a configurable 1bit, 4bit or 8bit interface with support for frame and line synchronization. The sensor integrates black level calibration circuit, automatic exposure and gain control loop, self-oscillator and motion detection circuit with interrupt output to reduce host computation and commands to the sensor to optimize the system power consumption.

Features

Image Sensor

Ultra Low Power Image Sensor (ULPIS) designed for Always On vision devices and applications
High sensitivity 3.6µ BrightSense^TM pixel technology
320 x 320 active pixel resolution with support for QVGA window, vertical flip and horizontal mirror readout
Programmable black level calibration target, frame size, frame rate, exposure, analog gain (up to 8x) and digital gain (up to 4x)
Automatic exposure and gain control loop with support for 50 / 60Hz flicker avoidance
Flexible 1bit, 4bit and 8bit video data interface with video frame and line sync
Motion Detection circuit with programmable ROI and detection threshold with digital output to serve as an interrupt
On-chip self oscillator *I2C 2-wire serial interface for register access High CRA for low profile module design

Sensor Parameters

Active Pixel Array 320 x 320
Pixel Size 3.6 µm x 3.6 µm
Full Image Area 1152 µm x 1152 µm
Diagonal (Optical Format) 1.63 mm (1/11″)
Color Filter Array Monochrome and Bayer
Scan Mode: Progressive
Shutter Type: Electronic Rolling Shutter
Frame Rate MAX 51 fps @ 320 x 320, 60 fps @ 320 x 240 (QVGA)
CRA (maximum) 30º

Sensor Specifications

Supply Voltage: Analog - 2.8 V, Digital - 1.5V (Internal LDO: 1.5V – 2.8V), I/O - 1.5 – 2.8V
Input Reference Clock: 3 – 50 MHz
Serial Interface (I2C): 2-wire, 400 KHz max.
Video Data Interface: 1b, 4b, 8b with frame / line SYNC
Output Clock Rate MAX: 50 MHz for 1bit, 12.5 MHz for 4bit, 6.25 MHz for 8bit
Est. Power Consumption (include IO with 5pF load):
- QVGA 60FPS (Typical) <4 mW
- QVGA 30FPS (Typical) <2 mW

Documents

Image Sensor Schematic
