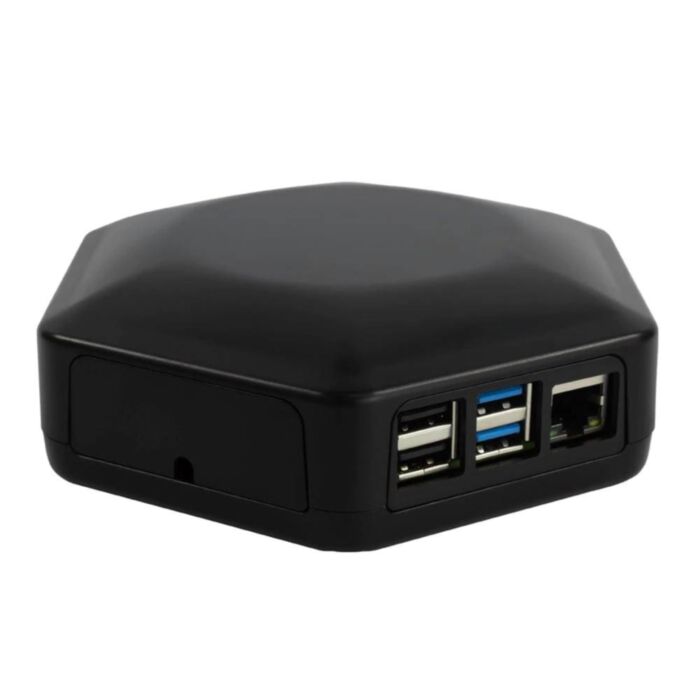

Hex-Box Case for Raspberry Pi 4 - Black

SKU: CE08522 Brand: The Pi Hut

House your Raspberry Pi 4 in a modern, functional and flexible enclosure solution - introducing the Hex-Box!

$35.60 AUD, inc GST

$32.36 AUD, exc GST

Available with a lead time
Expect dispatch between May 06 and May 13

Quantity Discounts:

10-25 $31.07 (exc GST)
25+ $30.10 (exc GST)

House your Raspberry Pi 4 in a modern, functional and flexible enclosure solution - introducing the Hex-Box!

The Hex-Box Pi4 case features seven self-retaining panels, two of which have been customised to accommodate the Raspberry Pi 4 and three vented panels to help maintain airflow. Quickly remove panels where required and customise your setup. You can even add your own PCB or perfboard to the mounting points found in the lid and base!

A set of six custom rubber feet are included to keep everything steady when used on a desk surface. Fixings are included both for the case itself and for securing the Raspberry Pi.

Want to mount your Hex-Box? Grab the optional matching circular bracket for wall or panel mounting - great for hiding your project under the desk (perfect for pi-hole or server builds!).

The Hex-Box is made in the UK made from 100% recyclable material.

Features

PCB mounting points in the top and base. Six bosses in the top, four in the base with Raspberry Pi mountable footprint
Number index in base aids wall mounting
Supplied with seven self-retaining panels, two pre-customised to allow for Raspberry Pi connections to be made
Smooth bevelled lid with flat top
Transform your Hex-Box IoT Enclosure into a wall-mountable enclosure with the optional Circular Wall Mount Bracket
Use your Hex-Box on a desktop using the included rubber feet
Ideal for industrial IoT, smart home or office, portable computer, networking projects, Pi camera, Pi screen, IoT etc
Fully recyclable and manufactured in the UK
Technical drawing

Fitting Notes

The Hex-Box comes with three screws for securing the base and lid.
Only three of the lugs have screw thread for these screws, so it's important to line up the base and lid correctly.
Look inside the securing lugs - the narrower threaded lugs are for the screw holes.

Package Contents

1x Hex-Box Enclosure including 7x side panels
6x Custom Rubber Feet
4x Pi mounting screws
3x Case fixing screws

Circular wall mount not included

Specifications

External Length (mm)	146
External Width (mm)	130
External Height (mm)	45
Internal Length (mm)	122.5
Internal Width (mm)	125.5
Internal Height (mm)	34.5
Weight (G)	120
Base Material	Plastic
Material Type	ABS UL94-V0
Colour	Black
UL Rating	UL94-V0
IK Rating	IK07
IP Rating	IP30
Development Board	Raspberry Pi 4B
Wall Thickness (mm)	2.5
Country Of Origin	Great Britain (GB)
