heART - Surface Mount Soldering Kit

SKU: KIT-14640 Brand: Sparkfun

Be still my beating heart! With the heART Surface Mount Soldering Kit you will be able to learn the basics of SMD soldering by being able to assemble a beating heart...

$35.35 AUD, inc GST

$32.14 AUD, exc GST

Available with a lead time
Expect dispatch between May 16 and May 19

Quantity Discounts:

10+ $31.17 (exc GST)
25+ $30.53 (exc GST)

Restrictions apply to this equipment as it uses button/coin cell batteries:

The equipment is intended to be used in trades, professions or industries
The equipment is not intended for sale to the general public
The equipment is not intended to be used where children are present
You are aware that this equipment may not meet child safety testing requirements as it is not intended to be used by consumers or general public, but rather, is intended to be used in trades, professions or industries in conjunction with the limitations and restrictions listed above
You are aware that these restrictions are due to a change in A ustralian legislation in 2022 for button/coin cell batteries

Button Battery Warning

A declaration of use will need to be submitted during checkout.

Warning: This product requires a button battery which is hazardous to young children. Do not use this product for projects that are potentially accessible to young children.

Be still my beating heart! With the heART Surface Mount Soldering Kit you will be able to learn the basics of SMD soldering by being able to assemble a beating heart pendant! Each heART kit takes about 20-40min to assemble depending on your soldering skill level with basic soldering materials (not included). This little kit provides a great learning tool to help you practice and improve your overall soldering skills without proving to be an impossible challenge!

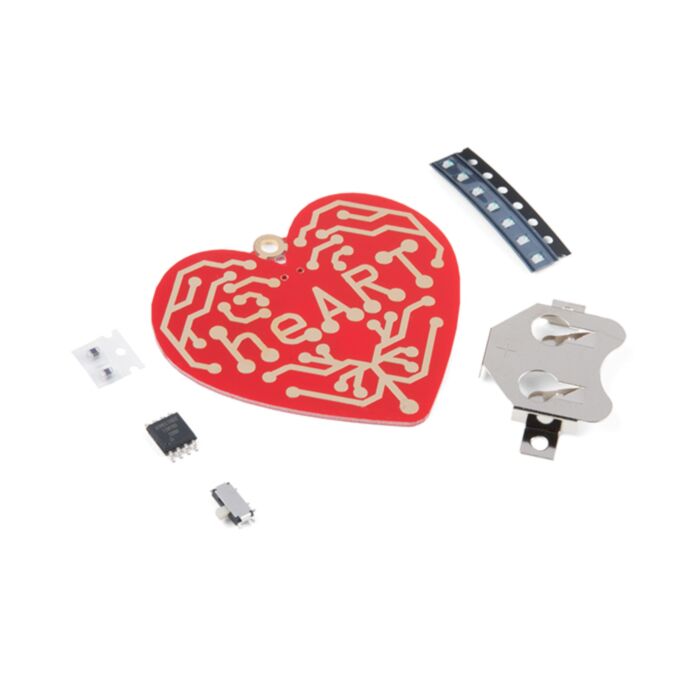

Every heART pendant kit includes one heart-shaped PCB, a CR2032 SMD battery holder, SMD LEDs, capacitors, switch, and an ATtiny85 (the heart of the heART). All you need to supply (besides a soldering iron and solder) is a CR2032 coin cell battery since it is not included to make shipping easier and some way to hang the completed pendant from your neck when you assemble it. The battery you provide should last over a week if left on continuously and much longer if switched off when not in use.

Note: Since this product is a kit, assembly and a healthy knowledge of soldering will be required. The heART pendant kit does not come pre-assembled.

Includes

1x heART PCB
5x SMD Red LEDs
1x SMD Capacitor
1x SMD ATtiny85
1x SMD Switch
1x CR2032 SMD Battery Clip

Documents

Assembly Video
