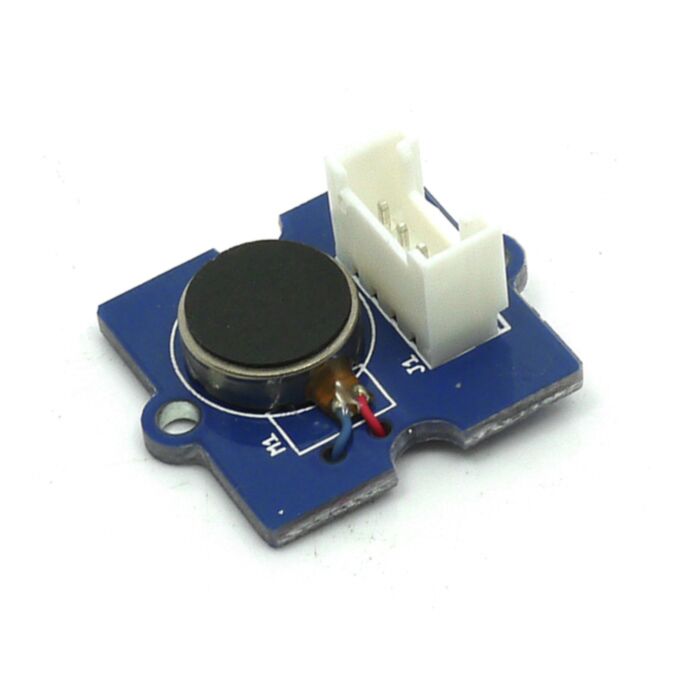

Grove - Vibration Motor (Seeed Studio)

Rating:

100% of 100

SKU: SS105020003 Brand: Seeed Studio

It consists one coin type motor which is a Permanent Magnet coreless DC motor. It vibrates when the input is logic HIGH. It is very easy to drive and Grove...

$4.05 AUD, inc GST

$3.68 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Fastest delivery: Tomorrow* Disclaimer:
For next-day delivery, the shipping address must be in the AusPost next-day network, eParcel Express must be selected, and the order must be placed before 2PM AEST Mon-Thurs excluding NSW Public Holidays. Orders may be delayed due to AusPost pickup timings and order verifications. eParcel Express is typically a 1-day service within the AusPost next-day network, though it is sometimes 2+ days.

Quantity Discounts:

10+ $3.54 (exc GST)
25+ $3.43 (exc GST)

Description

Key feature

Permanent Magnet Coreless DC motor, vibrates when the input logic is HIGH
Coin size(24mm x20mm), compact design, embed into your project easily
Grove Compatible Interface, play and play
Compatible with Arduino & Raspberry Pi, detailed instruction provided

Grove - Vibration Motor consists of one coin type motor which is a permanent magnet coreless DC motor. It vibrates when the input logic is HIGH which can be used to notify the user. Integrated with Grove interface, it provides a simple way to connect with Arduino boards without soldering (A Grove Base Shield is required). Grove Vibration motor is compatible with Arduino and Raspberry, it can also be used in toys and cell phones, health care products, etc.

What is Grove?

No jumpers or soldering required, Grove makes it easier to connect, experiment, and simplify the prototyping process significantly. We have developed more than 300 Grove modules, covering a wide range of applications that can fulfill a variety of needs. Each one comes with clear documentation and demo code to help you get started quickly. Not only are these open hardware, but we also have open-source software.

For all Grove users (especially beginners), we provide you guidance PDF documents. Please download and read through Preface - Getting Started and Introduction to Grove before your using of the product.

Demo & Project Idea

Kids playing on the streets without watching traffics might encounter danger. Why not make a safety badge to remind them? This demo will trigger the vibration motor when the distance between the wearer and any object is less than one meter.

It contains an ultrasonic sensor to detect any object, and a vibration motor to trigger action. Thanks to the plug and play feature, these parts from Grove system require no soldering for your circuit. Check here for step-by-step instruction!

Documents

Grove - Vibration Motor Schematic

S9013 Datasheet

ANDA-B1020 Datasheet

CDC File

ECCN/HTS

HSCODE	8503001000
USHSCODE	8501106080
UPC	841454107378
EUHSCODE	8471707000
COO	CHINA

Technical Details

Technical details

Dimensions	24mm x20mm x9.8mm
Weight	G.W 9g
Battery	Exclude

Part List

Grove - Vibration Motor

This product is listed in:

Components & Parts>Motors>Vibration Motors
