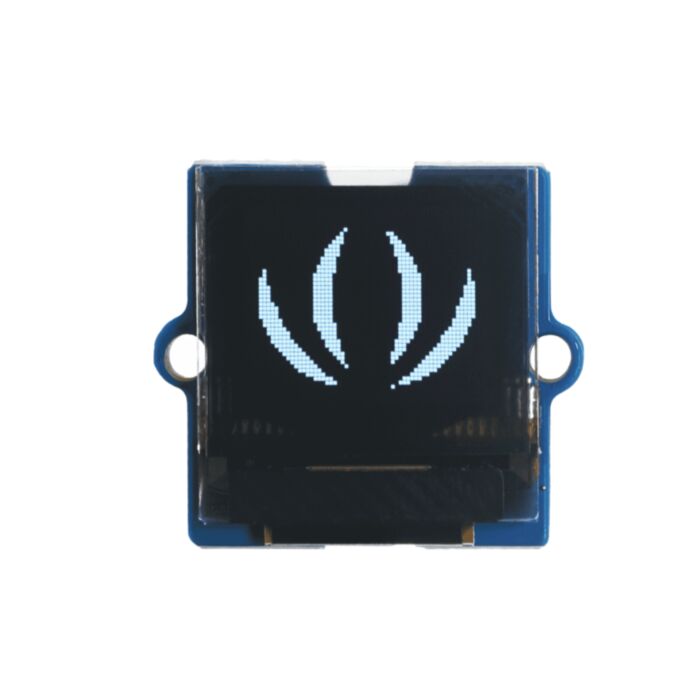

Grove - OLED Display 0.66" (SSD1306)- IIC - 3.3V/5V

SKU: SS104020248 Brand: Seeed Studio

The Grove - OLED Display 0.66" (SSD1306) is a monochrome display with 64×48 resolution. It contains a user-friendly design and outstanding performance with Grove I2C interface in 20mm×20mm ultra-small size.

$11.80 AUD, inc GST

$10.73 AUD, exc GST

Available with a lead time
Expect dispatch between Aug 06 and Aug 09

Quantity Discounts:

10-25 $10.30 (exc GST)
25+ $9.97 (exc GST)

As a new version, the Grove - OLED Display 0.66" (SSD1306) has a smaller screen compared to the other OLED(Organic Light Emitting Diode) display like Grove - OLED Display 0.96" (SSD1315). And yet it can still display with 64×48 resolution and it preserves the performance like the others, e.g. high brightness, low power consumption and Grove interface on the back, etc.

You can use the I2C interface to light up the mini display with your microcontroller to display words, images or whatever you want. 0.66" display screen helps you to show the information in a smaller place and you can use it as Arduino OLED display, Raspberry Pi PLED display, etc.

This Grove-OLED Display supports the U8g2 monochrome displays library written by Olikraus. The library is so convenient and well compatible that it can support SSD1306 and other chips like SSD1315. So get you one now and have fun with this tiny screen!

We have developed more than 300 Grove modules, covering a wide range of applications that can fulfill a variety of needs.

Features

Based on SSD1306, cropped to 64*48 resolution(Monochrome)
Ultra-small size: 20 * 20mm
High contrast, high brightness
Changeable I2C address
3.3V/5V power supply compatible
Low power consumption
Wide operating temperature range: -40° ~ +85°
User-friendly design: Grove interface on the back

Application

Intelligent clock
System monitoring
Weather stations

Specification

Input voltage: 3.3V / 5V
Output Voltage: 0 ~ 2.3V
Pixels: 64 x 48
Temperature Range: -40°C ~ +85°C
Interface: I2C

Technical Details

Dimensions: 20mm x20mm x4mm
Input voltage: G.W 9 g
Output Voltage: Exclude

Part List

Grove - OLED Display 0.66" (SSD1306) x1

Documentations
