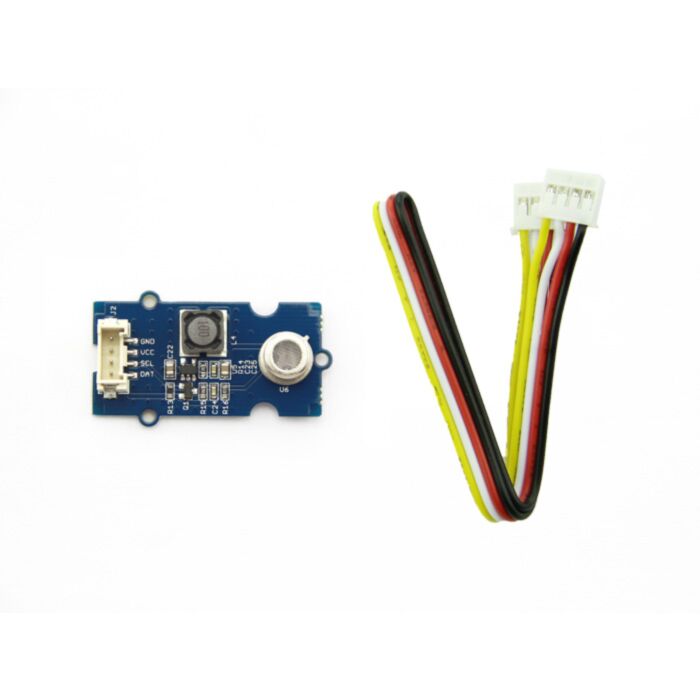

Grove - Alcohol Sensor (Seeed Studio)

SKU: SS101020044 Brand: Seeed Studio

How to choose a gas sensor ? Alcohol sensor is semiconductor sensor for alcohol detection. It has good sensitivity and fast response to alcohol, suitable...

$16.15 AUD, inc GST

$14.68 AUD, exc GST

Available with a lead time
Expect dispatch between Oct 02 and Oct 06

Quantity Discounts:

10+ $14.09 (exc GST)
25+ $13.65 (exc GST)

The Alcohol sensor is a type of gas sensor that is designed to detect the presence of alcohol vapor in the air. It is a type of semiconductor sensor, which means that it works by detecting changes in the electrical conductivity of a material in response to the presence of alcohol.

These types of sensors have several advantages for alcohol detection. They are highly sensitive, meaning they can detect even trace amounts of alcohol in the air. They also have a fast response time, which means they can detect alcohol quickly and accurately.

Specifications

Power requirements: 5 VDC @ ~120 mA (heater on)
Detection Gas: Alcohol
Concentration: 20-1000ppm Alcohol
Interface: 1 TTL compatible input (SEL), 1 TTL compatible output (DAT)
Dimension: 40×20×12mm
Heater Voltage: 0.9V ± 0.1V AC or DC
Heater Current: 120±20mA

Application Ideas

Alcohol level over-limit alarm
Stand-alone/background sensing device
Environmental monitoring equipment

Documents

Wiki
