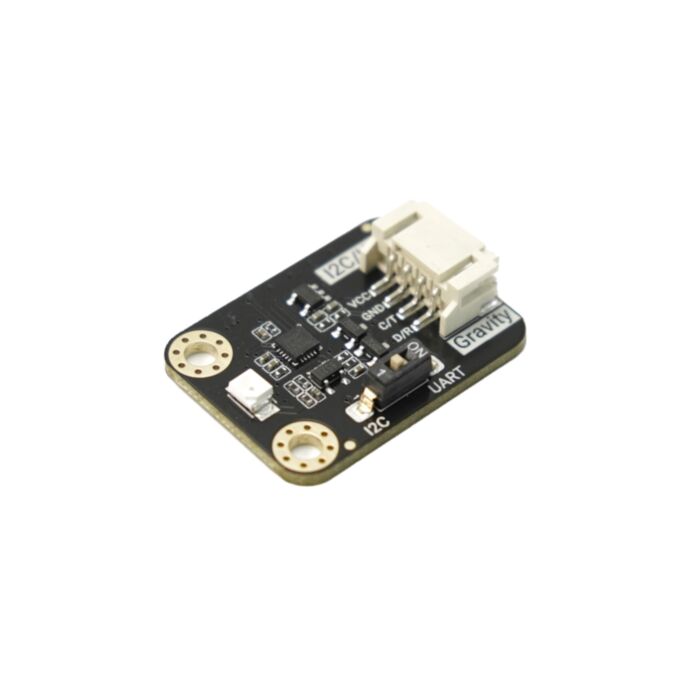

Gravity: UV Index Sensor (240-370 nm, UVA, UVB, UVC)

SKU: SEN0636 Brand: DFRobot
The Arduino Ultraviolet Radiation Index Meter (240-370 nm) with direct UV index and harm level output supports UART & I2C, ideal for UV monitoring...
Special Price $11.63 AUD, inc GST
Regular Price $15.48 AUD, inc GST
$10.57 AUD, exc GST
Special pricing ends 18 August 2025
* this special may end earlier than shown

Available with a lead time
Expect dispatch between Jun 02 and Jun 05

- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

The Gravity: UV Index Sensor is a highly sensitive device designed to measure ultraviolet (UV) radiation in the wavelength range of 240-370 nm, which includes UVA, UVB, and UVC wavelengths. The sensor primarily focuses on the UVB range, making it ideal for applications such as skin health assessment and UV index monitoring. This device directly outputs the UV index from 0 to 11 and provides a harm risk warning from 1 to 5, eliminating the need for additional calculations. It is versatile, supporting both I2C and UART communication methods, ensuring compatibility with a wide range of master control systems.

Direct UV Index and Harm Level Output

The UV Index 240-370 Sensor provides real-time UV index values ranging from 0 to 11 and harm levels from 1 to 5, offering immediate data without the need for conversion. This direct output simplifies the process for users, making it particularly useful for real-time monitoring of UV radiation and assessing the risk of skin damage.

Wide UV Wavelength Range

The sensor measures UV radiation across the 240-370 nm range, covering the UVA, UVB, and UVC segments. With a focus on the UVB range, it can be effectively used for applications like skin health monitoring and environmental UV radiation assessments.

Dual Communication Modes (I2C & UART)

With support for both I2C and UART communication protocols, the sensor can be easily integrated with a variety of systems and devices. This flexibility makes it suitable for diverse applications, from environmental monitoring to photovoltaic system optimization.

Wiring Diagram of Arduino UNO and Gravity:UV Index 240370 Sensor

Figure: Wiring Diagram of Arduino UNO and Gravity:UV Index 240370 Sensor

Specification

  • Operating Voltage: 3.3-5V DC
  • Communication Methods: I2C, UART
  • I2C Address: 0x23
  • UV Wavelength Range: 240-370nm
  • Operating Temperature: -30~80°C
  • Dimensions: 30mm×22mm
  • Documents

  • Product wiki
  • 2D CAD
  • 2D DXF
  • 3D STP
  • This product is listed in:

    Sensors>Light & Colour
