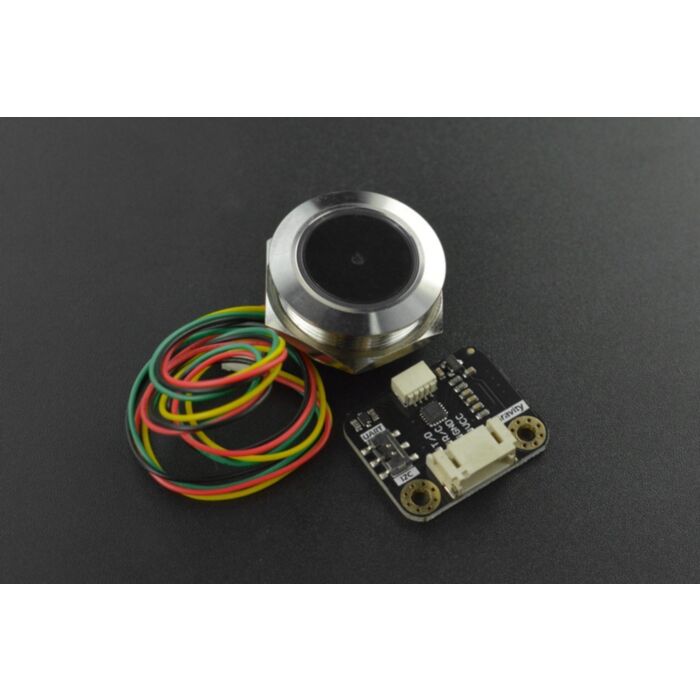

Gravity: Ring 2D QR Code Scanner

SKU: SEN0486 Brand: DFRobot

This highly-integrated QR code scanner with excellent performance can recognize common 1D codes and 2D codes. Operating at 3.3V/5V, the scanner is...

$69.05 AUD, inc GST

$62.77 AUD, exc GST

Available with a lead time
Expect dispatch between May 13 and May 20

Quantity Discounts:

6-12 $60.89 (exc GST)
12+ $59.64 (exc GST)

This highly integrated QR code scanner with excellent performance can recognize common 1D codes and 2D codes. With a small size, it employs easy-to-connect Gravity Interface and is equipped with a colorful indicator that feeds back the sensor recognition status by showing different colors.

Board-Overview

Operating at 3.3V/5V, the scanner is compatible with UART and I2C communication, which makes it easier to develop on controllers like Arduino, ESP32, Raspberry Pi, etc.

Connection-Diagram with DFRduino UNO R3

It can be used in self-service vending machines, subway gates, access control, payment machines, etc.

Features

Use-to-connect Gravity interface
3.3V/5V power supply
I2C & UART supported

Applications

Self-service vending machines
Subway gates
Access control
Payment machines

Specification

Power Supply: DC3.3V/5V
Working Current: <70mA
Communication: I2C, UART
Image Pixel: 640*480
Light Source: colorful indicator/green light flashing prompt successful reading
Code System: 1D: EAN13, EAN8, UPCA, UPCE0, UPCE1, Code128, Code39, Code93, CodeBar, Interleaved 2 of 5
2D: QR code, Data Matrix, PDF417
Depth of Field: QR Code (25mm-150mm product performance may be affected to varying degrees due to barcode quality and environmental conditions
Contrast: =25%
Reading Angle: roll 360°, pitch 55°, yaw 55°
Scanning Angle: 69° (horizontal), 56° (vertical)
Reading Accuracy: =5mil
Working Temperature: 20°C ~60°C
Storage Temperature: -40°C ~80°C
Environment Light: 0~100000Lux
Relative Humidity: 5% to 95% (non-condensing)

Documents

Product wiki

Parts List

Ring 2D QR Code Scanner x1
Adapter Board x1
PH2.0-4P Dupont Wire 30cm(Red Black Blue Green) x1
