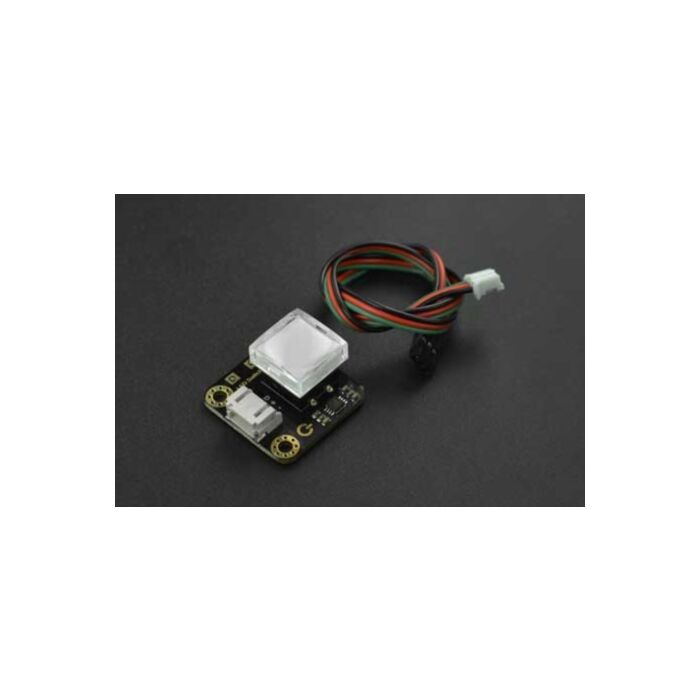

Gravity: LED Switch - White

SKU: DFR0789-W Brand: DFRobot

This is a simple LED-illuminated self-lock switch button. It’s just like a basic switch button, but it lights up color(red/yellow/green/blue/white) when pressed...

$7.80 AUD, inc GST

$7.09 AUD, exc GST

Available with a lead time
Expect dispatch between May 02 and May 06

Quantity Discounts:

10+ $6.81 (exc GST)
25+ $6.59 (exc GST)

Introduction

This is a simple LED-illuminated self-lock switch button. It’s just like a basic switch button, but it lights up color(red/yellow/green/blue/white) when pressed down, which gives you visual feedback. These little buttons can be used with micro: bit to realize various fun interactive projects, such as switch, backlight keyboard, music player panel, and recording control panel.

Note: The module comes with self-lock function. When the button is pressed down, the module outputs High, and the LED lights up. When being pressed again, the module outputs Low and the LED turns off.

Connection Diagram

Features

Internal LED turns On when the button is pressed down

Specification

Operating Voltage: +3.3-5V (3.3V is recommended)
Output: digital
Connector: PH2.0-3P
Dimension: 27×26.5mm
Colors Available: red, yellow, green, blue, white

Documents

Product wiki

Shipping List

Gravity: LED Switch x1
Digital Sensor Connector x1

This product is listed in:

Components & Parts>Switches>Pushbutton Switches
