Gravity: I2C Oxygen Sensor

SKU: SEN0322 Brand: DFRobot
The Gravity: I2C Oxygen Sensor is based on electrochemical principles and it can measure the ambient O2 concentration accurately and conveniently. With high anti-interference...
$85.70 AUD, inc GST
$77.91 AUD, exc GST

Available with a lead time
Expect dispatch between Oct 21 and Oct 25

Quantity Discounts:

  • 6-12 $75.57 (exc GST)
  • 12+ $74.02 (exc GST)
- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

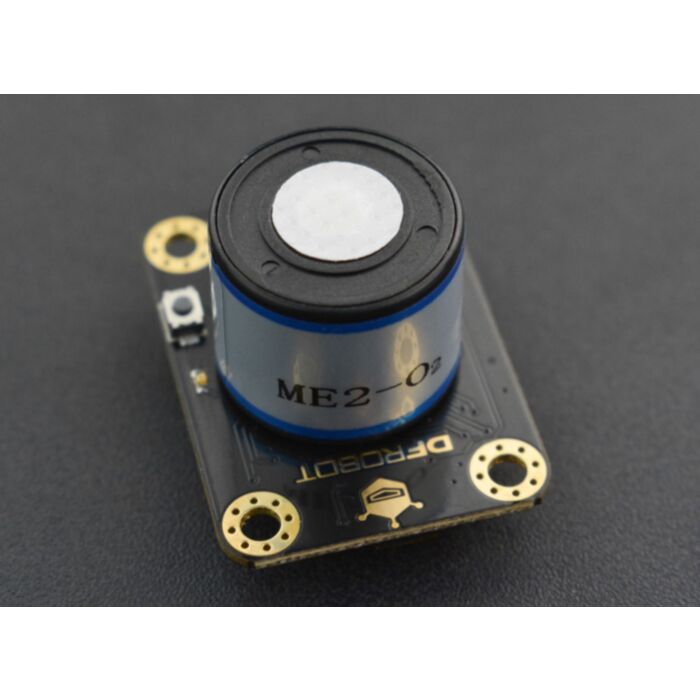

This Oxygen Sensor is based on electrochemical principles and it can measure the ambient O2 concentration accurately and conveniently. With high anti-interference ability, high stablility and high sensitivity,this arduino-compatible oxygen sensor can be widely applied to fields like portable device, air quality monitoring device, and industries, mines, warehouses and other spaces where air is not easy to circulate.

This compact dfrobot oxygen sensor supports I2C output, it can be calibrated in the air, can accurately measure the oxygen concentration in the environmentit. It is compatible with many mainboardslike Arduino Uno, esp32,Raspberry Pi and so on. Its measurement range is 0~25%Vol, and resolution can reach to 0.15%Vol. It supports wide range input voltage: 3.3V to 5.5V.Moreover, the lifetime is as long as 2 years. With simple Gravity interface and practical sample code, you can build your own oxygen concentration monitor easily and conveniently.



I2C Oxygen Sensor Selection Guide



Product Gravity:Electrochemical Oxygen Sensor  (0-25%Vol) - I2C

Gravity:Electrochemical O2 Sensor (Calibrated)

- I2C & UART

Gravity:Electrochemical Oxygen Sensor  (0-100%Vol) - I2C
SKU SEN0322 SEN0465 SEN0496

Detection

Range

0~25%Vol 0~25%Vol 0~100%Vol

Calibration

Method

Manual calibration Factory calibration Manual calibration
Output Signal I2C I2C?UART?Analog I2C

Working

Principle

Electrochemical Electrochemical Electrochemical
Stability <2%/Month <2%/Month <10%/Year
Response Time =15S =15S  0.1%~20.9%<40S  20.9%~100%<5S

Operating

Pressure Range

101kPa±10% 101kPa±10% 0.5 - 2.0 Bar

Temperature

Compensation

× v ×







Features

  • High sensitivity
  • I2C Interface
  • Compatible with both 3.3V and 5V micro-controllers
  • Polarity protection

Specification

  • Detection of Gas: oxygen
  • Operating Voltage: 3.3 to 5.5V DC
  • Output Signal: I2C output
  • Measurement Range: 0~25%Vol
  • Maximum Measurement limit: 30%Vol
  • Resolution: 0.15%Vol
  • Sensitivity: (0.10±0.05) mA (in the air)
  • Stability: <2% (Every month)
  • Repeatability: <2%
  • Response Time: =15 seconds
  • Operating Temperature: -20~50°C
  • Operating humidity: 0~99%RH (no condensation)
  • Pressure Range: standard atmospheric pressure ±10%
  • Lifetime:> 2 years (in the air)
  • Dimension(L x W x H): 37 * 27 * 24.5 mm/1.46 * 1.06 * 0.97 inches
  • Weight:0.037kg

Documents

Parts List

  • Gravity: Electrochemical Oxygen Sensor (0-25%Vol, I2C) *1
  • Gravity-4pin I2C Cable *1
  • M3*10 Nylon post *4
  • M3*5 Screws *8
