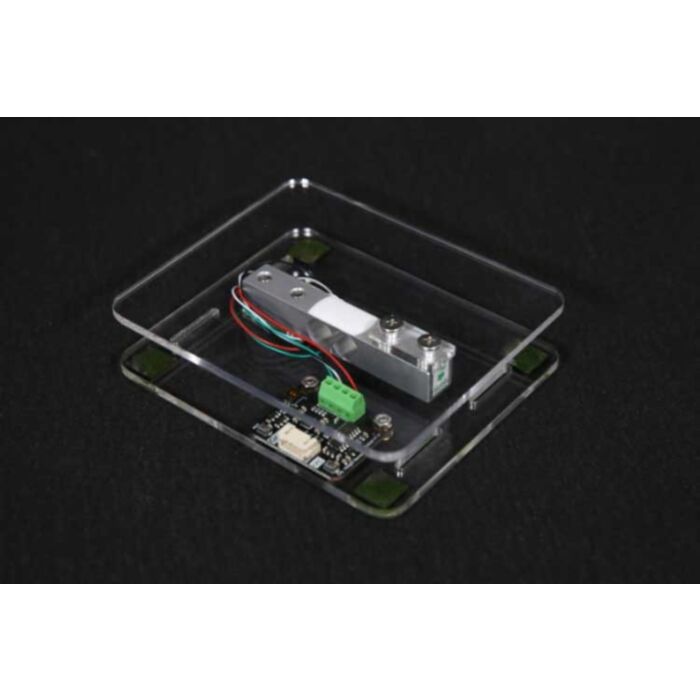

Gravity: HX711 Weight Sensor Kit

SKU: KIT0176 Brand: DFRobot

The weight sensor is a practical sensor close to daily life scenes. It can make many interesting applications by acquiring the weight information of objects, such...

$46.90 AUD, inc GST

$42.64 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Fastest delivery: Tomorrow* Disclaimer:
For next-day delivery, the shipping address must be in the AusPost next-day network, eParcel Express must be selected, and the order must be placed before 2PM AEST Mon-Thurs excluding NSW Public Holidays. Orders may be delayed due to AusPost pickup timings and order verifications. eParcel Express is typically a 1-day service within the AusPost next-day network, though it is sometimes 2+ days.

Quantity Discounts:

10+ $40.93 (exc GST)
25+ $39.65 (exc GST)

Introduction

The weight sensor is a practical sensor close to daily life scenes. It can make many interesting applications by acquiring the weight information of objects, such as household electronic scales, daily necessities remaining alarms, and Internet of Things weighing platforms. The weight sensor and HX711 signal transfer module are already available in the DFRobot mall. However, due to the difficulty of constructing the structure, many friends cannot use this sensor based on the inability to build the structure.

This weight sensor kit reduces the difficulty of structure construction so that you can conveniently make an electronic scale, and get the weight information of the object easily. In addition, because everyone has different installation methods and usage habits, the sensor needs to be calibrated. The traditional method is to use a separate calibration code to obtain the calibration value, In order to optimize this problem, the signal transfer board in this kit has a built-in calibration algorithm, which can calibrate the weight information with one click, and there is no need to run a separate code for calibration.

Connection Diagram

Features

I2C communication, compatible with 3.3V and 5V
Press one click to calibrate the weight/software API calibrate the weight
Press one click to "tare"/software API "tare"
With bracket kit, quick build

Applications

Simple electronic scale
Daily necessities remaining alarm
Internet of Things weighing platforms

Specification

Measuring Range: 1g-1000g
Working Voltage: 3.3V/5V
Working Current: <20mA
AD Conversion Chip: HX711
Synthesis Deviation: <±0.2% g
Overall Dimensions after Assembly: L x W x H: 120 x 100 x 30 mm/ 4.72 x 3.94 x 1.18 inch
Signal Transfer Board Size: 31 x 37mm / 1.22 x 1.46 inch
Communication Method: I2C
I2C Address: 0 x 64 / 0 x 65 / 0 x 66 / 0 x 67

Documents

Shipping List

Weight sensor x1
Signal transfer board x1
Acrylic bracket x1
M4x20 CM screws x2
M5x20 CM screws x2
M3x8 screws and nuts x2
Trapezoidal feet x4
Gravity-4P I2C cable x1
