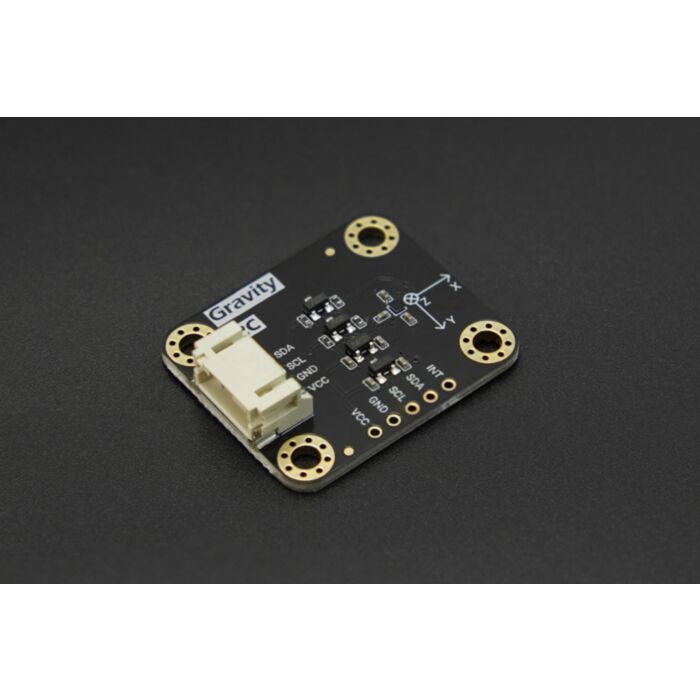

Gravity: BMM350 Triple-Axis Magnetometer Sensor for AR / VR

SKU: SEN0619 Brand: DFRobot
The DFRobot Gravity: BMM350 is a 3-axis geomagnetic sensor with high precision and low power consumption, utilizing TMR tech and Field Shock Recovery for...
Special Price $11.89 AUD, inc GST
Regular Price $15.41 AUD, inc GST
$10.81 AUD, exc GST
Special pricing ends 24 March 2025
* this special may end earlier than shown

Available with a lead time
Expect dispatch between Jan 02 and Jan 06

- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

The DFRobot Gravity: BMM350 3-axis geomagnetic sensor is designed to measure magnetic fields across three vertical axes and functions as a compass. Utilizing Bosch's patented FlipCore technology, this sensor provides accurate spatial orientation without the need for calibration. It maintains compatibility with the previous BMM150 series while delivering enhanced performance, including lower power consumption and improved measurement capabilities. The BMM350 is powered by the groundbreaking TMR (tunnel magnetoresistance) technology, coupled with a distinctive field shock recovery feature that fortifies the device against interference from external magnetic fields, guaranteeing consistent high-precision measurements. Notably, the BMM350 introduces I3C communication, offering advanced data transmission capabilities that enhance sensor integration and reduce wiring complexity.

BMM350 Magnetometer Applications



Field Shock Recovery Function

Powered by TMR (Tunneling Magneto Resistive) technology, the BMM350 features Field Shock Recovery, ensuring stable performance even when exposed to external magnetic field disturbances. This function makes the sensor highly robust, providing reliable and consistent data in dynamic environments.



Improved Sample Rate and I3C Communication

The BMM350 supports a high sample rate of up to 400Hz, delivering real-time data crucial for applications like AR/VR, AGV geomagnetic navigation, and drones. Additionally, its newly added I3C communication protocol enables faster data transmission and allows multiple sensors to be connected on a single bus, reducing wiring complexity and improving overall system efficiency.



High Precision, Low Power Consumption, and Wide Measurement Range

The BMM350 offers a significant improvement in measurement accuracy compared to its predecessor, the BMM150. It operates with an ultra-low current of just 200µA in normal mode at a 100Hz sample rate, making it ideal for battery-powered devices. With a measurement range of ±2000µT across all three axes, it can handle a broad spectrum of magnetic fields, accommodating both high and low field strengths for various applications.



Comparison Table of BMM150 and BMM350

Comparison Table of BMM150 and BMM350

Applications

  • AR/VR: Enhances spatial orientation in augmented and virtual reality environments.
  • E-compass: Offers reliable directional data for navigation devices.
  • AGV Geomagnetic Navigation: Supports automated guided vehicles with precise positioning.
  • Drones: Improves stability and navigation accuracy in aerial applications.

BMM350 Magnetometer Applications

Specification

  • Working Voltage: 3.3~5V DC
  • Working Current: 200µA (Normal mode @100Hz sample rate)
  • Zero-field Offset: ±25µT
  • Protocol: I2C
  • Working Temperature: -40~+85?
  • Start-up Time: 2.5ms
