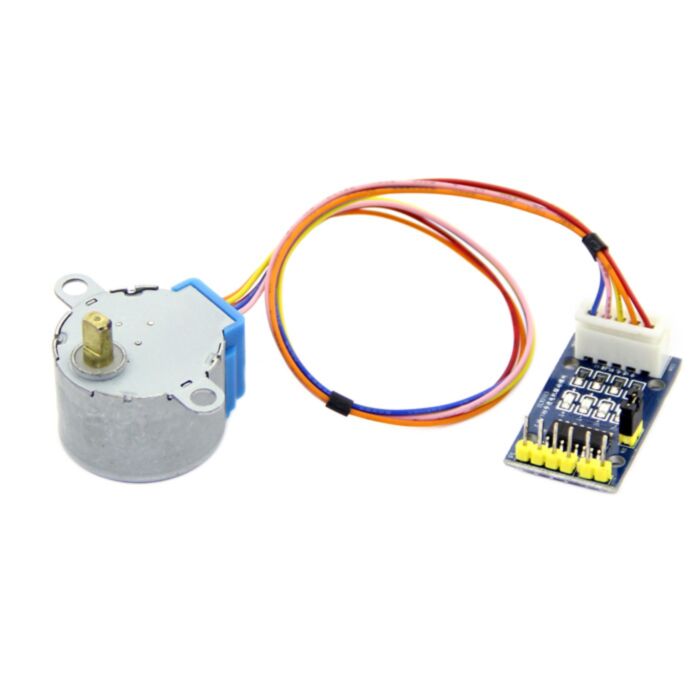

Gear Stepper Motor with Driver (Seeed Studio)

SKU: SS108990000

$11.59 AUD, inc GST
$10.54 AUD, exc GST

More Views

Gear Stepper Motor with Driver (Seeed Studio)
11.59 AUD

SKU: SS108990000

$11.59 AUD, inc GST
$10.54 AUD, exc GST
In stock, with a short lead time. 79 units dispatch in 6 to 14 days (in addition to the shipping method you choose). Our timing and stock is accurate. Delivery to you by Wed, 30th of Aug with Express Post within Australia.

Mainly used in air conditioner louver, small cooling and heating fan etc. Stable and all technic parameters are qualified for national electronic standard of SJ/T10689-95.



Features

  • On-board ULN2003A chipset

  • On-board 4-way indicator light

  • On-board XH-5P socket

  • Compatible with Arduino



Specifications

  • Rated Voltage: DC 5V

  • Number of Pole: 4

  • Speed Variation Ratio: 1/64

  • Stride Angle: 5.625°/64

  • DC Resistance: 200Ω ± 7%(25°C)

  • Idle In-traction Frequency: > 600Hz

  • Idle Out-traction Frequency: > 1000Hz

  • In-traction Torque: > 34.3mN.m(120Hz)

  • Self-positioning Tor: > 34.3mN.m

  • Insulated Resistance: > 10MΩ(500V)

  • Insulated Electricity Power: 600VAC/1mA/1s

  • Insulation Grade: A

  • Rise in Temperature: < 40K(120Hz)

  • Noise: < 40dB(120Hz, No load, 10cm)



Documents

Documentation and Resources:
