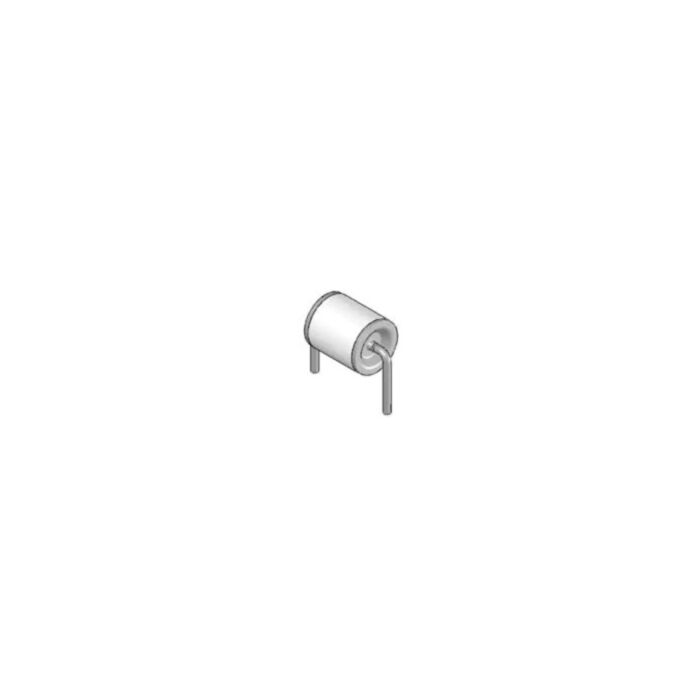

Gas Plasma Arrestors 4kV 20% 3kA EHV63-H40B1

SKU: COM-16149 Brand: Sparkfun

Retired Product

This product has been replaced by: Gas Plasma Arrestors
This product is no longer available. This page is only for reference.

EPCOS / TDK B88069X Surge Arresters (Gas Discharge Tubes) provide protection to sensitive electronic circuitry. Surge arresters are hermetically sealed gas discharge tubes consisting of two or three electrodes properly spaced by insulators and filled with a noble gas. These devices feature low capacitance and high insulation resistance, making them almost invisible in normal operation. These surge arresters are ideal for protection against voltage surges in telecommunication systems.

The EPCOS / TDK B88069X series includes a Stacked Surge Arrestor with high self-extinguishing and high follow current limitation capabilities. This device is ideal for Class I and II surge protection as well as AC power line, L-PE, and N-PE applications.

Features

Peak Pulse Current: 3kA
DC Sparkover: 4kV
Number of Electrodes: 2 Electrode
Termination Style: Axial
Failsafe Not Protected
Minimum Operating Temperature: -40C
Maximum Operating Temperature: +125C
Mounting Style: PCB Mount

Documents

Datasheet
