FLiR Dev Kit

SKU: KIT-13233 Brand: Sparkfun

Retired Product

Search for an alternative

This product has been retired. It is no longer available, but this page has been kept for reference.

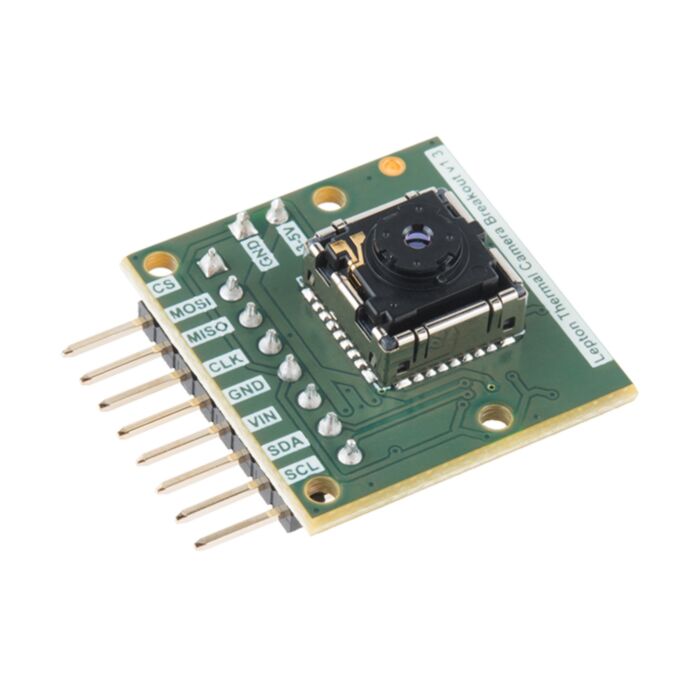

FLiR lead the industry with their infrared thermal imaging technology, and now you can bring that same awesomeness to your project with this FLiR Dev Kit. It features a breakout board along with a Lepton® longwave infrared (LWIR) camera. It's designed to work with Arduino, Raspberry Pi, or other ARM development tools and makes connection easy with the 0.1" spaced header pins.

So what can you use this fantastic bit of gear for? Well, it's primarily designed to allow you to see in the dark! That's right. the Lepton® imager has a 80x60 resolution and captures a thermal image from infrared radiation in the 8-14 microns wavelength. The Lepton® module attaches to the breakout board via the on-board socket and the board has all of the supporting circuitry required. Simply give it an input voltage of 3-5V and you can use a SPI port to read the image, plus I2C to configure the camera settings (optional).

The Lepton® camera module isn't soldered to the breakout board and needs to be inserted into the socket. The module is extremely sensitive to static damage and proper ESD safe methods and precautions should be taken when handling.

Includes:

1x FLiR Lepton® - Thermal Imaging Module
1x FLiR Lepton® - Breakout Board

Features:

LWIR sensor, wavelength 8 to 14 μm
51-deg HFOV, 63.5-deg diagonal
80 (h) × 60 (v) active pixels
Thermal sensitivity <50 mK
MIPI and SPI video interfaces
Two-wire I2C-like serial-control interface
Fast time to image (< 0.5 sec)
Low operating power, nominally 150 mW (< 160 mW over full temperature range)

Documents:

Schematic
Datasheet (Lepton®)
SDK
- 32bit
- 64bit
Reverse-Engineering the Lepton®
Product Page
GitHub (Library, Example Code, & Design Files)
