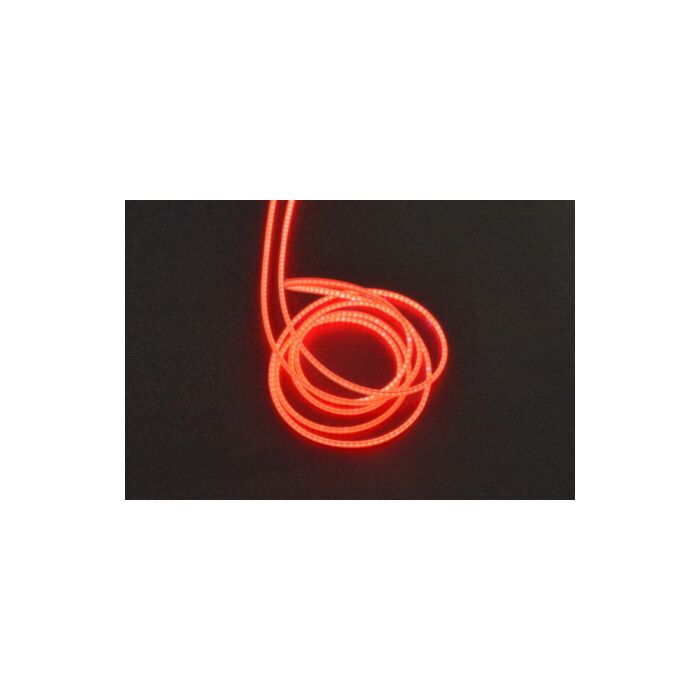

Flexible LED Filament (24V 1200mm, Red)

SKU: FIT0929 Brand: DFRobot
Make your next E-Textiles project shine with 24V 1200mm Red Color LED Flexible Filament Wire. This flexible LED filament chip is suitable for DIY, has a...
$23.25 AUD, inc GST
$21.14 AUD, exc GST

Available with a lead time
Expect dispatch between Nov 22 and Nov 26

Quantity Discounts:

  • 10-25 $20.50 (exc GST)
  • 25+ $20.08 (exc GST)
- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Measuring 1200mm in length with a 2mm diameter, this flexible filament has 640 LEDs that can be used for DIY lighting decoration and 360° all-angle lighting fixtures. It comes with adjustable brightness and requires a 21-24V power supply, with the positive electrode at the small round hole end and the negative electrode at the non-porous end. Its flexible design allows it to be bent and folded according to your needs, providing 360-degree light coverage.

Note: A power supply of 21-22V is recommended for prolonged use to avoid damage due to excessive heat.

Dimension of Flexible LED Filament

Figure: Dimension


24V 1200mm LED Flexible Filament (2700K)24V 1200mm LED Flexible Filament (2200K)
24V 1200mm Green LED Flexible Filament24V 1200mm Red LED Flexible Filament
24V 1200mm Blue LED Flexible Filament12V 600mm LED Flexible Filament (2200K)

Figure: Flexible LED Filament Lighting Effects

Clicking the image will take you to the corresponding product page.

Features

  • 1200mm in length, high brightness, suitable for DIY
  • 21-24V power supply, adjustable brightness
  • Compact size, positive and negative poles identified
  • Flexible filament, can be bent and folded as desired
  • Long lifespan of 5000-10000 hours
  • Applications

  • E-Textiles (smart fabrics): Incorporate electronic functionality.
  • LED filament light bulbs: Resemble traditional incandescent light bulbs with visible filaments for aesthetic and light distribution purposes but with the high efficiency of light-emitting diodes (LEDs) .
  • Specification

  • Length: 1200mm
  • Emitting Color: Red
  • Color Rendering Index: 80
  • Luminous Flux: 500lm
  • Supply Voltage: 21-24V
  • Working Current: 300mA @ 22V
  • Power: 6.6W @ 22V
  • Operating Temperature: -30 to +55°C
  • Storage Temperature: -10 to +40°C
  • Storage Humidity: 60%RH
  • Lifespan: 5000-10000 hours
  • Parts List

  • 24V 1200mm LED Flexible Filament (Red) x1
