FireBeetle 2 ESP32-E (N16R2) IoT Microcontroller (16M Flash, 2M PSRAM, Supports Wi-Fi & Bluetooth)

Skip to the beginning of the images gallery

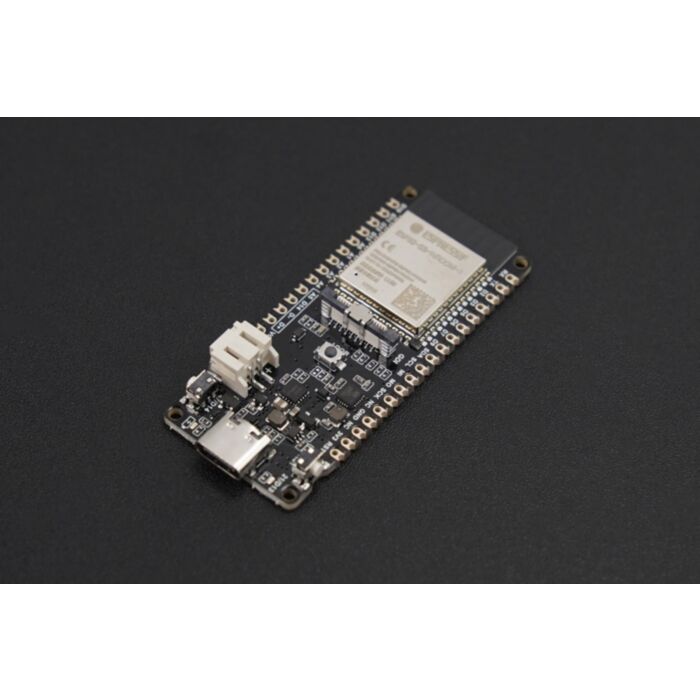

FireBeetle 2 ESP32-E (N16R2) IoT Microcontroller (16M Flash, 2M PSRAM, Supports Wi-Fi & Bluetooth)

SKU: DFR1139 Brand: DFRobot

FireBeetle 2 ESP32-E (N16R2) is an IoT Development Board with 16M Flash, 2M PSRAM, WiFi & Bluetooth. Features Compact Design and Multiple Interfaces....

$25.75 AUD, inc GST

$23.41 AUD, exc GST

Available with a lead time
Expect dispatch between Jan 30 and Feb 03

Quantity Discounts:

10-25 $22.71 (exc GST)
25+ $22.24 (exc GST)

The FireBeetle 2 ESP32-E (N16R2) IoT development board equipped with 16M Flash and 2M PSRAM. It is designed to provide superior performance for applications such as the LVGL graphics library for interface design and interaction. Built on the foundation of Espressif's ESP32-WROOM-32E-N16R2 module, it boasts a 32-bit dual-core processor with a clock frequency of up to 240MHz. With support for WiFi and Bluetooth dual-mode communication, it is an ideal choice for IoT scenarios.

Abundant peripheral interfaces

Including 17 digital pins, 11 analog pins, 3 UART interfaces, 1 SPI interface, 1 I2C interface, 1 I2S interface, and 2 DAC interfaces, it can meet various hardware connection needs.

Board Overview of FireBeetle 2 ESP32-E (N16R2) Development Board

Dual power supply modes

Supporting both USB and external 3.7V lithium battery power supply, it can automatically switch between power sources under dual power supply, and supports both USB and external DC charging modes.

Support for multiple programming methods

Including Arduino IDE, ESP-IDF, Micro-Python, etc., catering to different developers' programming habits.

Support Arduino IDE, ESP-IDF, Micro-Python

Compact design, convenient for embedding

With a size of only 25.4mm × 60mm, onboard WiFi and Bluetooth antennas, and using stamp hole design, it is convenient to embed or integrate into PCB prototypes.

The difference between ESP32-WROOM-32E and ESP32-WROOM-32UE

TheESP32-WROOM-32E (this product) uses an onboard PCB antenna. This type of antenna is realized through PCB technology, does not require separate antenna assembly, is not easily damaged by touch, and is convenient for whole machine assembly. Onboard antennas can save space, reduce costs, and because they can be carefully positioned on the board, they can provide signal integrity. However, their gain may be lower than that of external antennas.

The ESP32-WROOM-32UE, on the other hand, connects to an external antenna via a connector. External antennas can be installed on the outside of the device and include both omnidirectional and directional antenna types. The main advantage of external antennas is that they can provide higher gain, thereby enhancing the communication range of Bluetooth or WiFi.

Furthermore, this product is one of the low-power IoT development boards in the FireBeetle series. If it does not meet your requirements, you can refer to the FireBeetle Series Selection Guide to choose a more suitable model.

Features

Equipped with ESP32-WROOM-32E-N16R2 dual-core module
Clock frequency up to 240MHz, with 16M Flash and 2M PSRAM for large memory capacity
Low-power development board, supporting dual-mode communication of WiFi and Bluetooth
Onboard GDI display interface for quick connection to display screens
Onboard charging circuit and PH2.0 lithium battery interface, supporting dual power supply and automatic switching
Supports various programming methods such as Arduino IDE, ESP-IDF, Micro-Python
Compact design, small size, suitable for space-limited and embedded IoT projects

Applications

Home automation renovation
Remote control of robots
Environmental data monitoring
Smart lighting control
Control panel UI design

IoT applications of FireBeetle 2 ESP32-E (N16R2) IoT Microcontroller

Specification

Power Parameters

Input Voltage

USB-C interface: 5V DC
PH2.0 interface: 3.7V Li-ion
VCC pin: 5V DC

MCU Parameters

Processor: Tensilica LX6 dual-core processor
Clock Frequency: 240MHz
SRAM: 520KB
ROM: 448KB
Flash: 16MB
PSRAM: 2MB
On-chip Clock: 40MHz crystal oscillator, 32.768KHz crystal oscillator

Wireless Parameters

Wi-Fi Standard: FCC/CE/TELEC/KCC
Wi-Fi Protocol: 802.11 b/g/n/d/e/i/k/r (802.11n, up to 150 Mbps), A-MPDU and A-MSDU aggregation, supports 0.4us protection interval
Wi-Fi Frequency Range: 2.4~2.5 GHz
Bluetooth Protocol: Compliant with Bluetooth V4.2 BR/EDR and BLE standards
Bluetooth Audio: CVSD and SBC audio
Bluetooth Frequency Range: 2.4~2.5GHz

Peripheral Parameters

Digital Pins × 17
Analog Pins × 11
UART Interfaces: ×3
SPI Interface: ×1
I2C Interface: ×1
I2S Interface: ×1
DAC Interface: ×2
Touch Interfaces: ×7
LED PWM Channels: ×16
RGB_LED: WS2812
Display Interface: GDI

Other Parameters

Interface Compatibility: FireBeetle V2 series compatible
Module Size: 25.4mm × 60mm
Weight: 23.4g

Documents

Parts List

FireBeetle 2 ESP32-E (N16R2) IoT Microcontroller x1
18pin-2.54mm Pitch Pin x1
18pin-2.54mm Pitch Pin Female x1
14pin-2.54mm Pitch Pin x1
14pin-2.54mm Pitch Pin Female x1
