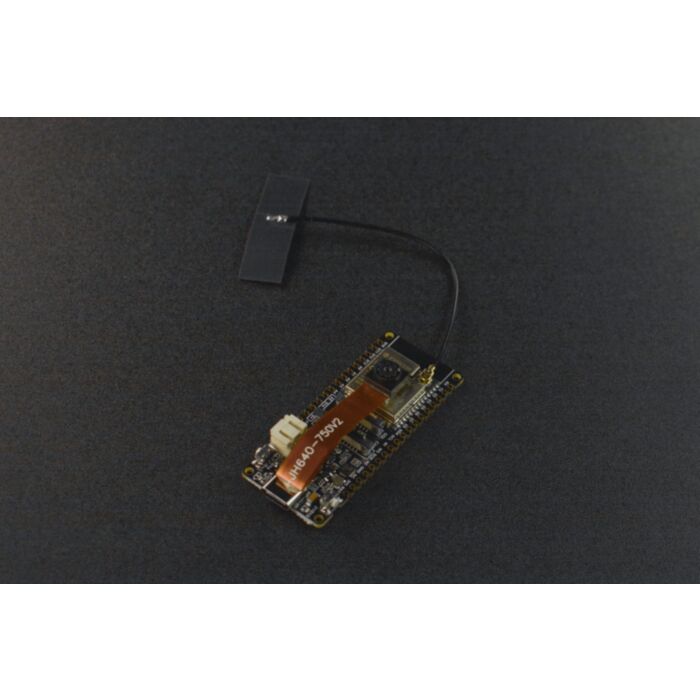

FireBeetle 2 Board ESP32-S3-U (N16R8) AIoT Microcontroller with Camera (Wi-Fi & Bluetooth Routed through Cable)
Available with a lead time
Expect dispatch between May 23 and May 29
Quantity Discounts:
- 10-25 $32.58 (exc GST)
- 25+ $31.91 (exc GST)
FireBeetle 2 ESP32-S3-U is a high-performance main controller built around the ESP32-S3-WROOM-1U-N16R8 module. ESP32-S3-WROOM-1U-N16R8 comes with 16MB Flash and 8MB PSRAM for storing more data. The acceleration for neural network computing and signal processing workloads provided by the ESP32-S3 chip make the module an ideal choice for a wide variety of applications, such as speech recognition, image recognition, and so on.
FireBeetle 2 ESP32-S3-U offers an onboard camera interface for easy connection with a camera. Also, an independent camera power supply circuit is designed, which helps reduce interference from other signals to the camera. The board comes with an OV2640 camera that offers 2 megapixels, 68° FOV, and up to 1600*1200 resolution. Besides, its onboard easy-to-connect GDI greatly saves the trouble of wiring for using with a screen. Meanwhile, the controller integrates a power management function, which allows users to charge a Li-ion battery and turn the hardware on/off.
In addition, FireBeetle 2 ESP32-S3-U supports WiFi and Bluetooth 5 (LE) dual-mode communication, which reduces the difficulty of networking. Meanwhile, both Bluetooth Mesh protocol and Espressif WiFi Mesh are supported for more stable communication and a larger coverage area. With the support of Matter protocol, the microcontroller can be used to develop industrial standard smart home devices for a wider range of IoT and AIoT (Artificial Intelligence of Things) scenarios.
FireBeetle 2 ESP32-S3-U can be programmed by Arduino IDE, ESP-IDF, and MicroPython. Both C and Python are supported.
Image recognition
Video picture transmission
Comparison Table
| FireBeetle 2 Board ESP32-S3 (N16R8) AIoT Microcontroller | FireBeetle 2 Board ESP32-S3-U (N16R8) AIoT Microcontroller | |
| WiFi | Soldered on the board | Routed through a cable |
| Bluetooth | Soldered on the board | Routed through a cable |
Features | Cohesive design, more visually appealing | Better signal quality |
Features
Applications
Specification
Basic Parameters
Hardware Information
WIFI
Bluetooth
Ports
Projects
Project: DIY a plant growth recorder with ESP32 S3
Introduction I plan to create a DIY plant growth recorder that will allow me to monitor the entire growth process of my plants from seedling to maturity, while tracking environmental conditions throughout.
Figure: DIY a plant growth recorder with ESP32 S3
