Keep your indoor air fresh and safe with Fermion: MEMS Volatile Organic Compounds Gas Detection Sensor, perfect for air detection systems.
In stock, ships same business day if ordered before 2PM
Delivered by Fri, 29th of Nov
Quantity Discounts:

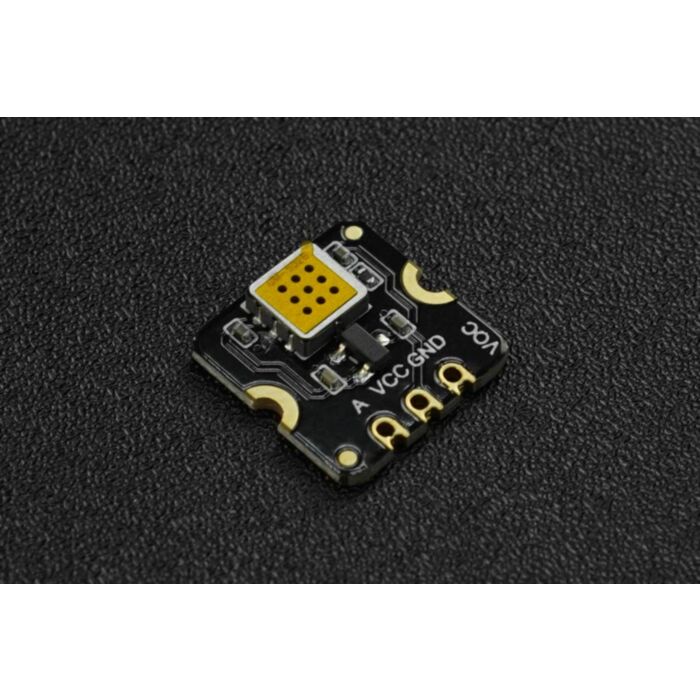

Fermion: MEMS Volatile Organic Compounds VOC Gas Sensor employs state-of-the-art microelectromechanical system (MEMS) technology, endowing the sensor with compact dimensions (13x13x2.5mm), low power consumption (<20mA), minimal heat generation, short preheating time, and swift response recovery. The sensor can qualitatively measure VOC gas concentration and is suitable for indoor air quality detection, fresh air system, air purifier and other application scenarios.
The MEMS series currently encompasses 11 different types of gas sensors (HCHO, CO, CH4, VOC, NH3, H2S, EtOH, Smoke, Odor, H2, NO2), which can be combined as per specific requirements.
Please note: This sensor is capable of only qualitative measurements. For quantitative measurements, kindly consider purchasing the Gravity: Factory Calibrated Electrochemical Gas Sensor Series.
Figure: Wiring Diagram of Fermion: MEMS VOC sensor and Arduino UNO
Precautions for use
Project: Building an Electronic Nose with MEMS Gas Detection Sensor Breakout Series and Edge Impulse Platform
In this project, I developed an electronic nose using DFRobot mems series gas sensors and the Edge Impulse platform, which is capable of identifying the scents of beverages and fruits.
