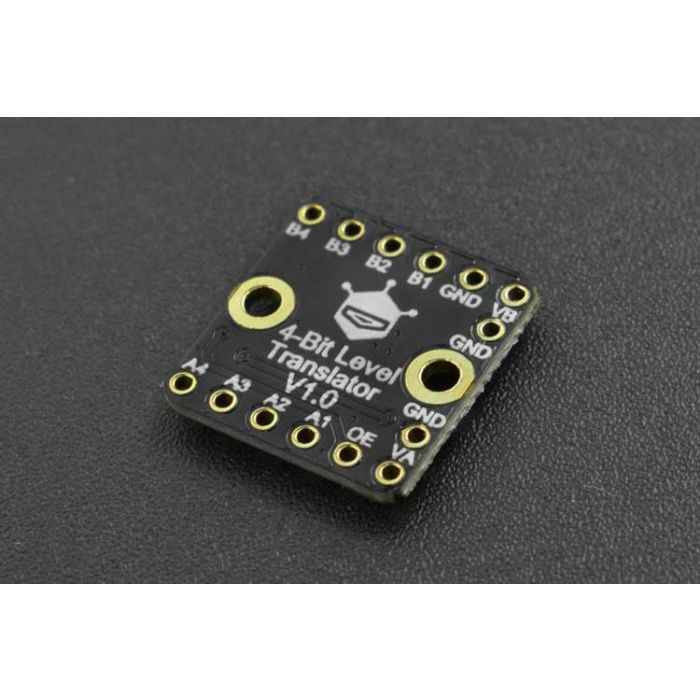

Fermion: 4-Bit Level Translator (Breakout)

Name: Fermion: 4-Bit Level Translator (Breakout)
Brand: DFRobot
SKU: DFR0843
Price: 6.75 AUD
Availability: BackOrder

SKU: DFR0843 Brand: DFRobot

After purchasing an open-source product that is not electrical level compatible, you may find that your sensor cannot work normally or even is easy to be damaged...

$6.75 AUD, inc GST

$6.14 AUD, exc GST

Available with a lead time
Expect dispatch between Aug 19 and Aug 24

Quantity Discounts:

6+ $5.83 (exc GST)
12+ $5.58 (exc GST)

After purchasing an open-source product that is not electrical level compatible, you may find that your sensor cannot work normally or even is easy to be damaged because the level of the sensor and your controller are not compatible. Apart from the poor experience you encountered, this also causes economic losses. In order to solve this problem, DFRobot launched a level conversion module with strong level compatibility and fast signal conversion speed.

This 4-bit non-inverting translator uses two separate configurable power-supply rails. The A port is designed to track VCCA. VCCA accepts any supply voltage from 1.65 V to 3.6 V. VCCA must be less than or equal to VCCB. The B port is designed to track VCCB. VCCB accepts any supply voltage from 2.3 V to 5.5 V. This allows for low-voltage bidirectional translation between any of the 1.8-V, 2.5-V, 3.3-V, and 5-V voltage nodes. It can automatically track the power supply voltage and its conversion speed can reach up to 24Mbps in push-pull applications. The module can be used in the level conversion of communication protocols such as I2C, UART, SPI, and OneWire.

Connection Diagram

Features

Low power consumption
High conversion speed, up to 24Mbps in push-pull applications, up to 2Mbps in open-drain applications
Bidirectional automatic conversion, no direction control needed

Specification

VCCA Voltage Range: 1.65V-3.6V
VCCB Voltage Range: 2.3V-5.5V
Conditions of Use: VCCB>VCCA
Working Current: 15uA
Support Port: push-pull, open-drain
Conversion Speed: push-pull 24Mbps(MAX)\open-drain 2Mbps(MAX)
Working Temperature Range: -30°C ~ 75°C
Product Size: 15.5×15mm/0.61×0.59 inches
Mounting Hole Pitch: 11mm
Mounting Hole Size: M2.0

Documents

Product Wiki

Parts List

4-Bit Level Translator x1
2.54 Black Single Row 6Pin x2
