Ethernet Shield for Arduino - W5200

Rating:

100% of 100

SKU: DFR0272 Brand: DFRobot

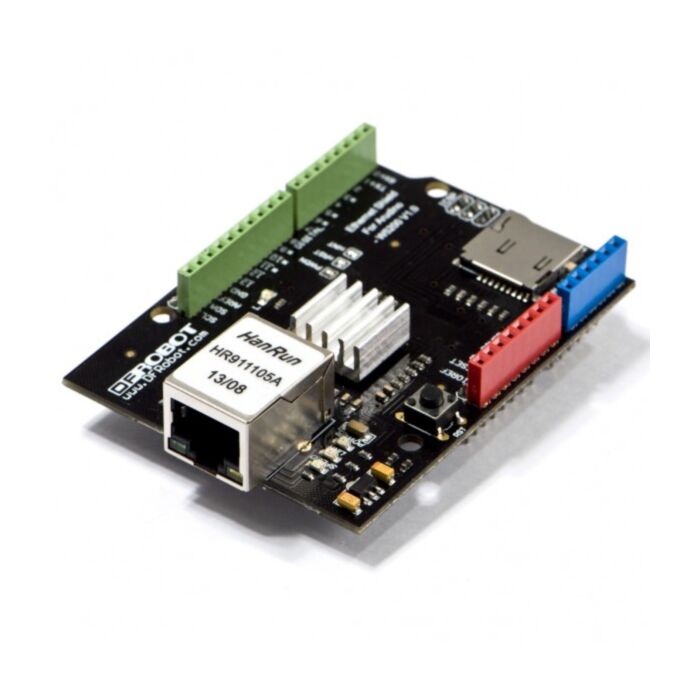

This Arduino-sized Ethernet Shield is based on the Wiznet W5200 Ethernet Chip, and provides an easy way of getting your Arduino Online. Fits all version of arduino Main board,e.g.UNO, mega 2560. To start, just plug this module onto your Arduino board, connect it to your network with an CAT 5 Ethernet Cable (not included) and follow a few simple instructions, you will be able to explore the world with internet. The pin layout also allows another shield to be stacked on top. An aluminum alloy radiator is placed onto W5200 chip to release excessive heat.

$33.95 AUD, inc GST

$30.86 AUD, exc GST

Available with a lead time
Expect dispatch between Dec 03 and Dec 09

Quantity Discounts:

10-25 $29.94 (exc GST)
25+ $29.32 (exc GST)

Features

Directly supported by Arduino official Ethernet Library.
Add-on micro-SD card slot, which can be used to store files and accessed via the SD Library.
Compatible with the Arduino Uno as well as Mega (2560).
The Wiznet W5200 provides a network (IP) stack capable of both TCP and UDP.
Supports up to four simultaneous socket connections.
Use the Ethernet library to write sketches which connect to the internet using the shield.
Aluminum alloy radiator to release excessive heat

Applications

Home network device: set top box, PVR, digital media center
Serial Ethernet: access control system, LED display, wireless AP repeater, etc.
Parallel Ethernet: POS machine or hand-held printer, copier
USB Ethernet: storage devices, network printers
Security Systems: Network Camera
Monitoring equipment
Embedded Server

Technical Specifications

Working voltage: 5v
Ethernet socket
Support Micro SD card reading / writing
Ethernet and SD card sharing the SPI interface, only one function per i
Standard size Arduino compatible controller, while supporting Arduino Mega Series
Size: 70x55x30mm

Documents

Parts List

DFRduino Ethernet Shield for Arduino - W5200 *1
