Ethernet Development Board w/ Web Server Demo PIC24FJ256GB106

SKU: 017-DB-DP11115

$76.72 AUD, inc GST
$69.75 AUD, exc GST

More Views

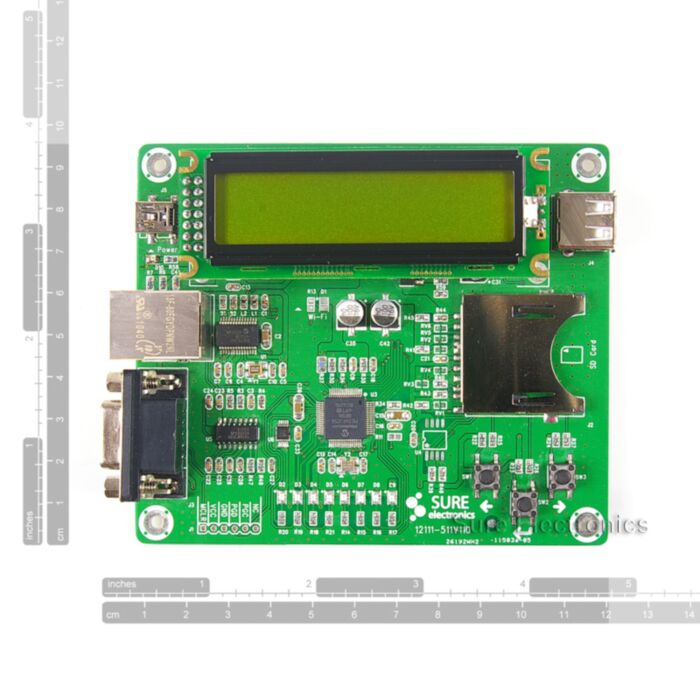

Ethernet Development Board w/ Web Server Demo PIC24FJ256GB106

SKU: 017-DB-DP11115

$76.72 AUD, inc GST
$69.75 AUD, exc GST

Shipping:

  • $6.95 Standard (2-4 days, tracked)
  • $9.95 Express (Overnight*, tracked)
  • $3 Economy Post* (3-7 days, no tracking)
  • FREE Pickup (Newcastle only)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

This product has been retired and kept here for reference.

This demo board provides an easy and a cost-effective method of evaluating and developing Ethernet control applications using PIC24FJ256GB106 and the 28-pin ENC28J60 Ethernet controller which interfaces to the RJ-45 female connector.

Features:

  • Size: 120.60 (L) × 96.70(W) × 24.70(H) ±0.2mm
  • Powered by miniB USB cable
  • Save webpages in a USB Flash Disk
  • Support dynamic page display
  • Compatible with PIC24 Storage Demo Board
  • Web-based status monitoring
  • Web-based LEDs control
  • 1602 characters display

Hardware:

  • PIC24FJ256GB106 IC
  • ENC28J60 Ethernet controller
  • 1602 LCD display
  • USB A socket – for USB Flash Disk
  • Eight LED indicators
  • USB miniB port – for powering
  • RJ-45 female connector – for networking
  • DB-9 female port – communication
  • SD card socket – SD card
  • Three tactile switches

Software:

  • Engineering source codes
  • Hex file
  • Webpages

Package Contents:

  • Advancer Ethernet Development Board ×1
  • MiniB USB Cable ×1
