Ethernet Communication Module USB SPI - ENC28J60 Remote Control

SKU: 017-MB-CM14111 Brand: Sure Electronics

Retired Product

Search for an alternative

This product has been retired. It is no longer available, but this page has been kept for reference.

The Ethernet module is a small network interface card implemented with Microchip Technology new Stand Alone ENC28J60 Ethernet Network Controller.

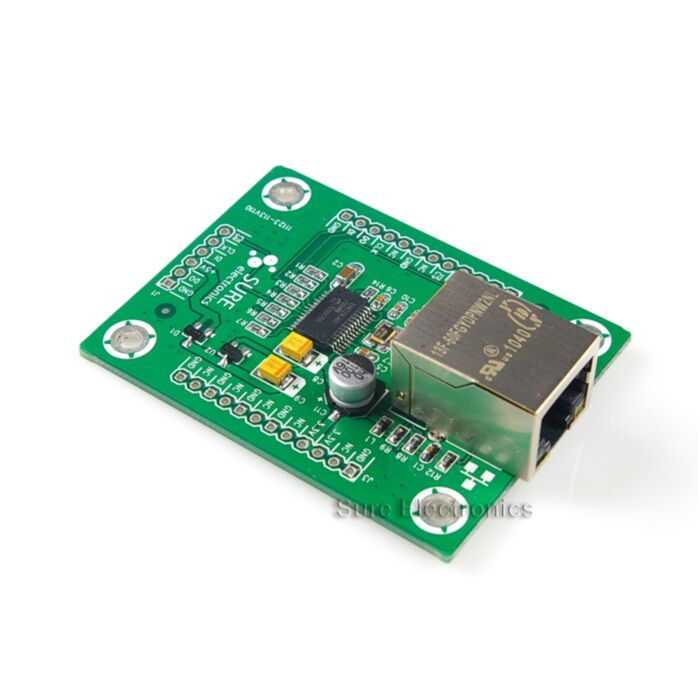

The circuit board includes all required components for the Ethernet controller, plus a RJ-45 jack with integrated magnetics and built-in Link, and Activity LEDs for connection to an Ethernet Local Area Network. This module can be used with any Microprocessor or Microcontroller supporting the industry standard SPI™ interface.

Features:

Size: 62.90 (L) × 45.70(W) × 17.00(H) ±0.2mm
IEEE 802.3 compatible Ethernet controller
Integrated MAC and 10 BASE-T PHY
SPI Interface with clock speeds up to 20MHz
RJ45 jack for network connection
Selectable 3.3V or 5.0V DC supply
Microchip’s TCP/IP protocol stack, with IPv4, UDP, TCP, DHCP, FTP, and HTTP support
Fully assembled and tested
Supports one 10BASE-T port with automatic polarity detection and correction
Supports Full and Half-Duplex modes

Absolute Maximum Ratings

Symbol	Parameter	Value	Unit
VCC	Supply Voltage (@Vcc=5.0V)	5.5	V
VCC	Supply Voltage (@Vcc=3.3V)	3.4	V
ISUP	Supply Current (@ VCC=5.0V)	160	mA
TOP	Operating Temperature	0 to 70	℃
TSTO	Storage Temperature	-50 to 150	℃

Package Contents:

Ethernet Communication Module - ENC28J60 ×1
30-pin Single-Row Header ×1
