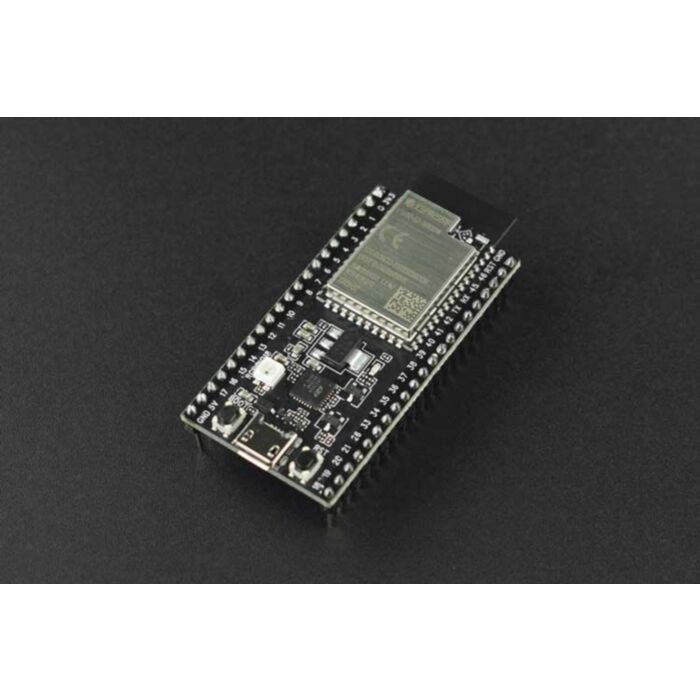

ESP32-S2-Saola-1M Development Board

SKU: DFR0812 Brand: DFRobot

ESP32-S2-Saola-1 is a small-sized ESP32-S2-based development board. Most of the I/O pins are broken out to the pin headers on both sides for easy interfacing. Developers...

$37.70 AUD, inc GST

$34.27 AUD, exc GST

Quantity Discounts:

10+ $32.90 (exc GST)
25+ $31.87 (exc GST)

Out of Stock

Introduction

ESP32-S2-Saola-1 is a small-sized ESP32-S2-based development board. Most of the I/O pins are broken out to the pin headers on both sides for easy interfacing. Developers can either connect peripherals with jumper wires or mount ESP32-S2-Saola-1 on a breadboard.

ESP32-S2-Saola-1 is equipped with ESP32-S2-WROOM module, a powerful and generic Wi-Fi MCU module that has a rich set of peripherals. It’s an ideal choice for a wide variety of application scenarios like wearable electronics and smart home. The board has PCB onboard antenna, and 4MB SPI flash.

Description of Components

Key Component	Description
ESP32-S2-WROVER	ESP32-S2-WROVER is a powerful, generic Wi-Fi MCU module that integrates ESP32-S2. It has a PCB antenna, a 4 MB external SPI flash and an additional 2 MB PSRAM.
I/O Connector	All available GPIO pins (except for the SPI bus for flash and PSRAM) are broken out to the pin headers on the board. Users can program ESP32-S2 chip to enable multiple functions such as SPI, I2S, UART, I2C, touch sensors, PWM etc.
USB to UART Bridge	Single USB-UART bridge chip provides transfer rates up to 3 Mbps.
Boot Button	Download button. Holding down Boot and then pressing Reset initiates Firmware Download mode for downloading firmware through the serial port.
Reset Button	Reset button.
3.3 V Power On LED	Turns on when the USB power is connected to the board.
Micro-USB Port	USB interface. Power supply for the board as well as the communication interface between a computer and the ESP32-S2 chip.
RGB LED	Addressable RGB LED (WS2812), driven by GPIO18.

Block Diagram

Specification

ESP32-S2 chip, Xtensa single-core 32-bit LX7 Microcontroller
128 KB ROM
320 KB SRAM
16 KB RTC SRAM
40 MHz crystal oscillator integrated
4 MB SPI flash
Operating/Supply Voltage: 3.0 ~ 3.6 V
Recommended Operating Temperature: –40 ~ 85 °C

Documents

Product wiki

Shipping List

ESP32-S2-Saola-1M Development Board x1
